How to Adjust Motorcycle Clutch Cable: A Step-by-Step Guide for Proper Tension

Measuring motorcycle handlebar grip distance with tape measure for safety and precision adjustments.

A properly adjusted clutch cable ensures smooth gear shifts and prevents premature wear on your motorcycle’s clutch components. When your bike starts to have trouble shifting or the clutch lever feels too tight or loose, it’s time for an adjustment. To adjust your motorcycle clutch cable, locate the adjuster nuts near the clutch lever, loosen the lock nut, turn the adjuster to achieve the correct free play (typically 2-3mm), then retighten the lock nut while holding the adjuster in position.

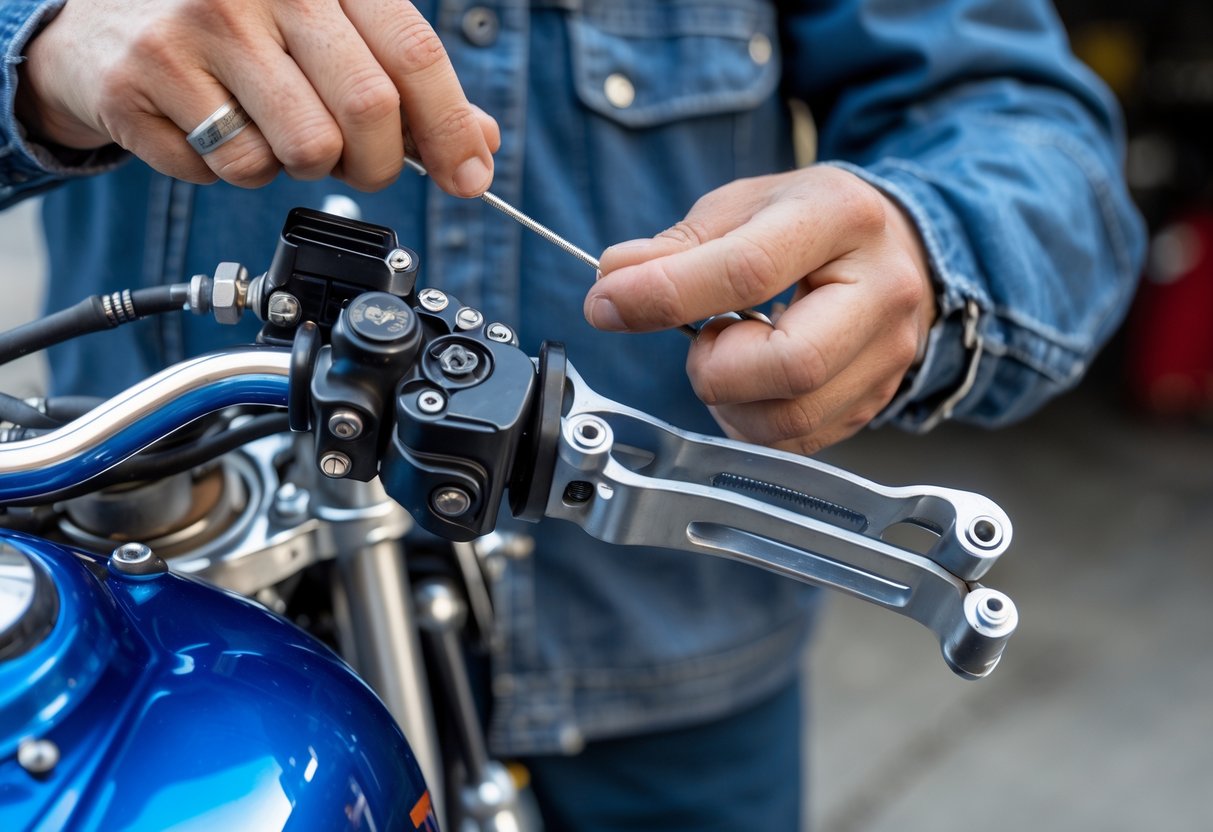

Close-up of hands adjusting a motorcycle clutch cable near the handlebar.

Many riders overlook this simple maintenance task, but it can make a huge difference in your riding experience. The clutch is one of the most frequently used controls on your motorcycle. A properly adjusted clutch cable not only makes riding more comfortable but also extends the life of your clutch plates and prevents unnecessary strain on your hand during long rides.

Key Takeaways

  • Proper clutch cable adjustment requires 2-3mm of free play at the lever to prevent clutch damage and ensure smooth shifting.
  • Regular cable maintenance should be performed whenever you notice changes in clutch feel or difficulty shifting gears.
  • Adjust the cable at both the handlebar and engine ends for precise control, and test by spinning the rear wheel with the clutch engaged.

Understanding Motorcycle Clutch Cables

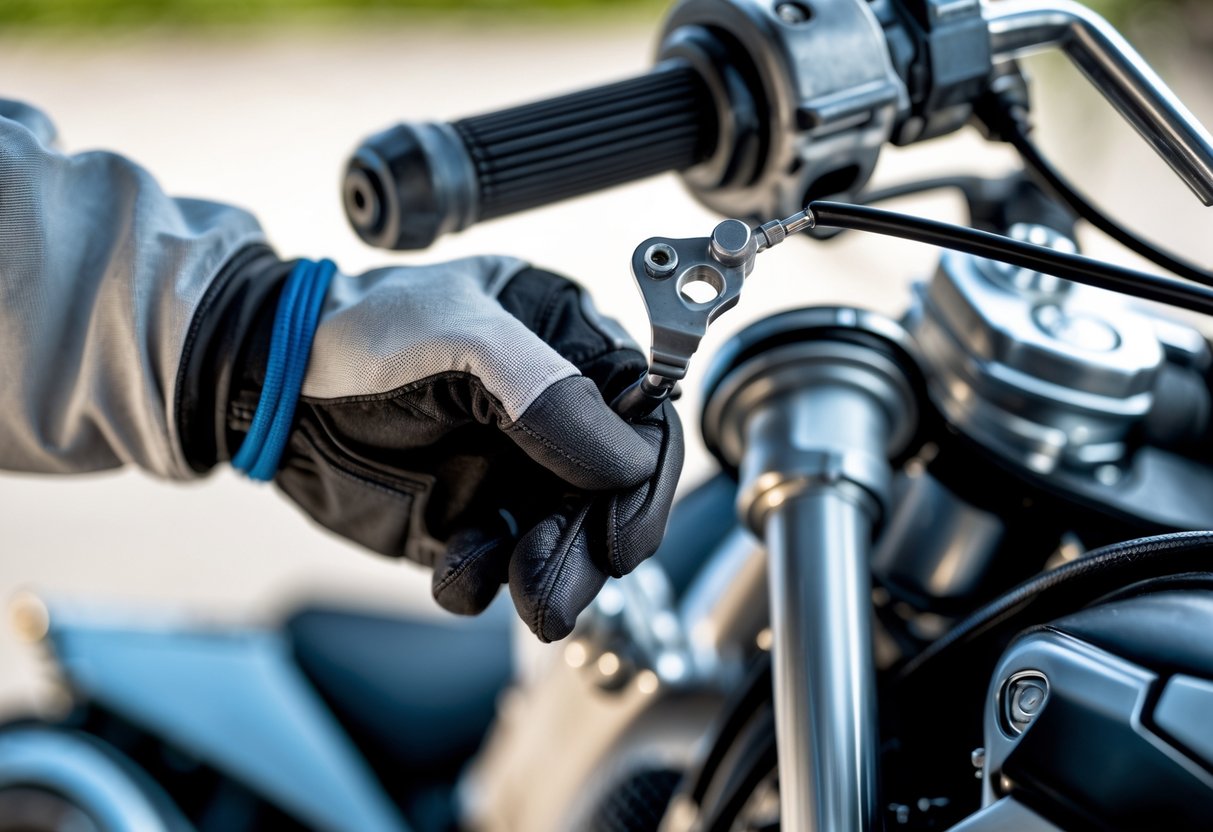

Close-up of hands adjusting a motorcycle clutch cable near the handlebar.

A motorcycle clutch cable is a vital mechanical component that connects your handlebar lever to the clutch mechanism on your engine. This simple but crucial system allows riders to control power delivery from the engine to the transmission.

What a Clutch Cable Does

The clutch cable serves as the physical link between your left handlebar lever and the clutch assembly inside your motorcycle’s engine. When you pull the clutch lever, the cable transmits this force to disengage the clutch plates, temporarily disconnecting power from the engine to the transmission. This disengagement allows riders to shift gears safely without damaging the transmission.

Without proper clutch operation, shifting gears becomes difficult or impossible. The cable must maintain the right amount of tension to ensure complete disengagement when pulled and full engagement when released. Too much slack in the cable can prevent the clutch from fully engaging, causing slippage and premature wear of the clutch plates.

Key Components: Clutch Lever, Adjusters, and Cable

The clutch system consists of several important parts working together:

  • Clutch Lever: The handlebar-mounted control that riders operate with their left hand
  • Cable: The steel wire housed within a protective sheath that transfers movement
  • Cable Adjusters: Components that allow fine-tuning of cable tension
  • Clutch Arm: The mechanical component on the engine side that activates the clutch plates

Most motorcycles feature two adjustment points: a primary adjuster near the handlebar and a secondary adjuster near the clutch arm. These allow riders to maintain optimal free play—the distance the lever moves before the clutch begins to disengage.

The cable itself must be strong enough to withstand thousands of clutch operations while remaining flexible for smooth operation. Clutch cables typically use multi-strand steel wire for durability and flexibility.

Types of Clutch Cable Setups

Different motorcycles employ various clutch cable configurations based on their design and intended use:

  1. Standard Cable Systems: Found on most conventional motorcycles, featuring a single cable with adjusters at both ends

  2. Heavy-Duty Cables: Used in high-performance and off-road motorcycles, these are thicker and more durable to handle aggressive riding

  3. Pull Systems: Most common setup where pulling the lever disengages the clutch

  4. Push Systems: Less common configuration where the cable pushes to activate the clutch mechanism

Modern sport bikes and touring motorcycles may utilize cable adjusters with locking mechanisms to prevent unwanted changes in adjustment during riding. Some high-end motorcycles have replaced traditional cables with hydraulic systems that eliminate the need for manual adjustments altogether.

Vintage motorcycles often have simpler adjustment mechanisms requiring more frequent maintenance than their modern counterparts.

Signs Your Clutch Cable Needs Adjustment

Close-up of hands adjusting a motorcycle clutch cable on the handlebar.

Your motorcycle’s clutch cable requires regular attention as it can stretch and wear over time, affecting your bike’s performance. Recognizing the warning signs early can prevent more serious issues and keep your rides smooth and enjoyable.

Common Symptoms of Improper Adjustment

A properly adjusted clutch cable should have the right amount of free play – typically between 2-3mm at the lever. When adjustment is needed, you’ll notice several telltale signs:

  • Hard or stiff lever action – requires excessive force to pull
  • Spongy or too-loose feel at the lever
  • Unusual noise when engaging or disengaging the clutch
  • Clutch lever touching the handlebar before engaging

If your clutch lever feels different than usual, it’s likely time for an adjustment. Improper clutch-cable slack doesn’t just feel weird, it can actually damage your clutch.

You can perform a quick check by pulling in the clutch lever and noting how it feels. Too much resistance or barely any resistance both indicate problems.

Impact on Shifting and Engagement

Poor clutch adjustment directly affects your motorcycle’s performance in several critical ways:

Shifting Problems:

  • Difficulty changing gears
  • Grinding sounds during shifts
  • Missed shifts or “false neutrals” between gears
  • Inability to find neutral when stopped

Engagement Issues:

These symptoms not only create an unpleasant riding experience but can also be dangerous in traffic situations where quick, smooth clutch operation is essential.

Understanding Free Play Changes

Free play refers to the distance the clutch lever moves before it begins to disengage the clutch. This measurement is crucial for proper function.

Too much free play:

  • Clutch may not fully disengage
  • Bike may “creep” forward at stops
  • Difficulty shifting into gear
  • Extra lever movement required before engaging

Too little free play:

  • Clutch plates partially disengage even when lever is released
  • Premature clutch wear
  • Overheating of clutch components
  • Loss of power transfer

Environmental factors can affect your clutch cable adjustment. Temperature changes cause metals to expand and contract, altering the cable’s tension. Regular riding also gradually stretches the cable.

Check your clutch free play every few weeks or whenever you notice changes in how your clutch feels or performs.

Preparing to Adjust the Clutch Cable

Close-up of hands preparing to adjust a motorcycle clutch cable on the handlebar.

Before making any adjustments to your motorcycle’s clutch cable, proper preparation is essential. This includes understanding safety measures, gathering the right tools, and identifying the key components you’ll be working with.

Safety Precautions

Always start with the motorcycle engine off and completely cooled down. This prevents accidental burns from hot engine parts. Make sure the motorcycle is in neutral and properly supported on its stand or a motorcycle lift.

Wear appropriate protective gear, including mechanic’s gloves to protect your hands from sharp edges and pinch points. If you’re working underneath the bike, safety glasses can protect your eyes from debris.

Never adjust the clutch cable immediately after riding. The engine components will be hot and could cause serious burns. Wait at least 30 minutes for everything to cool down properly.

Tools and Materials Needed

For most clutch cable adjustments, you’ll need:

  • Wrenches: Typically 8mm, 10mm, and 12mm open-end wrenches
  • Screwdrivers: Both flathead and Phillips head
  • Pliers: For gripping the cable if needed
  • WD-40 or lubricant: To spray on sticky adjusters
  • Owner’s manual: For bike-specific specifications

Some motorcycles might require specialized tools to access the derby cover or internal adjusters. Check your owner’s manual for specific tool requirements for your motorcycle model.

Having a clean rag handy helps wipe away excess lubricant and keeps your hands clean during the adjustment process.

Locating the Adjusters and Lock Nuts

Most motorcycles have two adjustment points for the clutch cable: one at the handlebar (cable adjuster) and one near the clutch housing (pushrod adjuster).

The handlebar adjuster is typically located where the clutch cable enters the clutch lever assembly. It consists of a threaded barrel adjuster and a lock nut that secures the adjustment in place.

The secondary adjustment point is usually found near the clutch housing on the left side of the motorcycle. On some bikes, you may need to remove a derby cover to access this adjuster.

Identify both the adjusters and their corresponding lock nuts before beginning any adjustments. The lock nuts must be loosened before turning the adjusters and tightened afterward to prevent the adjustment from changing during operation.

Step-by-Step Clutch Cable Adjustment

Close-up of hands adjusting a motorcycle clutch cable near the handlebar using a wrench.

Proper clutch cable adjustment ensures smooth gear changes and prevents clutch damage. The right amount of free play at the lever creates optimal clutch engagement and improves your riding experience.

Loosening the Lock Nut

To begin adjusting a motorcycle clutch cable, locate the adjuster mechanism near the clutch lever on the handlebar. This mechanism typically consists of a threaded barrel adjuster and a lock nut. Before making any adjustments, it’s essential to loosen this lock nut.

Using a suitable wrench (often a 10mm or 12mm), hold the adjuster in place while turning the lock nut counterclockwise. This prevents the entire assembly from rotating during the loosening process.

Once the lock nut is loose, it will allow the adjuster to rotate freely for making the necessary adjustments to the clutch cable tension. Make sure not to completely remove the lock nut – it only needs to be loose enough to permit adjustment.

Adjusting Free Play at the Lever

The clutch lever should have between 2-3mm of free play before the clutch begins to disengage. This free play is crucial for proper clutch operation and preventing premature wear of clutch components.

To adjust the free play, turn the barrel adjuster at the lever. Rotating it clockwise will decrease free play (tightening the cable), while counterclockwise rotation increases free play (loosening the cable).

Check the adjustment by pulling the lever gently until you feel resistance. This point is where the clutch begins to disengage. Measure the distance from the lever’s resting position to this point – this is your free play.

If you cannot achieve proper free play at the lever adjuster, you’ll need to make additional adjustments at the clutch arm near the engine.

Fine-Tuning at the Adjuster

For fine-tuning or when the handlebar adjuster doesn’t provide enough range, locate the secondary adjuster near the clutch arm or on the cable itself. This adjuster allows for more significant changes in cable tension.

Similar to the lever adjuster, this mechanism has a lock nut and an adjustment bolt or barrel. Loosen the lock nut with the appropriate wrench, then adjust the bolt to change cable tension.

To test your adjustment, ensure the motorcycle is in neutral with the engine off. Pull in the clutch lever completely and try to spin the rear wheel. It should turn freely with no resistance when the clutch is fully disengaged.

After achieving the correct adjustment, tighten all lock nuts securely to maintain the proper setting. Check that the clutch engages smoothly and disengages completely through the full range of lever movement.

Advanced Adjustments and Internal Components

Close-up of a person adjusting a motorcycle clutch cable using a wrench on the handlebar.

Some motorcycle clutch issues require deeper adjustments beyond the cable. These internal adjustments affect how the clutch engages and can resolve problems that cable adjustments alone cannot fix.

Primary Adjustments and Derby Cover Access

To access internal clutch components, you’ll need to remove the derby cover on the left side of the engine. Before starting, drain the primary oil if your motorcycle has a wet clutch system. This prevents making a mess when the cover is removed.

Use the correct size socket to remove the derby cover bolts. Place them in a container in the order they were removed. Some covers have different length bolts in specific positions.

Once the derby cover is off, you’ll see the clutch assembly. Look for signs of oil leakage, damaged gaskets, or worn components. This is also a good time to check the primary chain tension if your motorcycle has one.

Keep a clean rag handy to wipe away excess oil. Avoid getting dirt or debris inside the primary case.

Pushrod Adjustment

The pushrod transfers motion from the clutch cable to the pressure plate. Improper pushrod adjustment can cause clutch slipping or incomplete disengagement.

Locate the pushrod adjuster, typically a screw mechanism with a locknut. The factory service manual will specify the exact measurements, but generally:

  1. Loosen the locknut
  2. Turn the adjusting nut clockwise to tighten (less free play)
  3. Turn counterclockwise to loosen (more free play)
  4. Tighten the locknut when finished

Proper adjustment should allow the clutch to fully engage when released and fully disengage when pulled. Too tight, and the clutch will slip; too loose, and the clutch won’t disengage completely.

Test the adjustment by checking if the clutch fully disengages in first gear with the engine running. The motorcycle should not creep forward when the clutch lever is pulled.

Inspecting the Clutch Pack

The clutch pack consists of alternating friction plates and steel plates. These components wear over time and may need replacement.

When examining the clutch pack, look for:

  • Discoloration (blue tint indicates overheating)
  • Warping of steel plates (check with a straight edge)
  • Worn friction material on friction plates
  • Uneven wear patterns

Measure the thickness of the entire clutch pack and compare it to specifications in your service manual. A pack that’s too thin will cause slipping.

Check each plate individually. Friction plates should have adequate material remaining. Steel plates should be flat without warping. Replace any damaged components as a complete set rather than individually.

Some performance upgrades involve replacing stock clutch plates with aftermarket options that offer better heat resistance and longer life.

Maintaining and Lubricating the Clutch Cable

Close-up of hands adjusting and lubricating a motorcycle clutch cable in a workshop.

Regular maintenance of your motorcycle’s clutch cable ensures smooth operation and prevents costly replacements. Proper lubrication and preventive care significantly extend the life of this critical component.

When and How to Lubricate the Cable

Most riders should lubricate their clutch cable every 3-6 months or 3,000 miles, whichever comes first. Dusty or wet riding conditions may require more frequent attention.

To lubricate properly:

  1. Purchase a quality cable lube with a cable oiler attachment
  2. Locate the clutch cable where it enters the clutch lever housing
  3. Attach the cable oiler to this entry point
  4. Hold the clutch lever in slightly to create space
  5. Inject lubricant until it appears at the other end of the cable

The clutch cable lubrication process is often overlooked but can be done at home with inexpensive tools. A well-lubricated cable provides smoother clutch operation and better control while riding.

Signs that indicate immediate lubrication is needed include sticking, roughness when pulling the lever, or unusual resistance.

Preventing Cable Wear

Proper clutch cable adjustment is essential for preventing premature wear. A cable that’s too tight puts unnecessary strain on the mechanism, while one that’s too loose causes poor clutch engagement.

Check the cable’s free play regularly using this method:

  1. Pull the clutch lever gently until resistance is felt
  2. Measure the distance the lever traveled (typically 2-3mm is ideal)
  3. Adjust if necessary using the cable adjuster at either end

The cable adjuster allows fine-tuning without complete replacement. On most motorcycles, this adjuster is located near the clutch lever or at the engine end of the cable.

Avoid sharp bends in the cable routing and protect it from extreme temperatures. Heat shields can be installed in areas where the cable runs close to the engine.

Model Specific Tips: Harley-Davidson Sportster

Person adjusting the clutch cable on a Harley-Davidson Sportster motorcycle in a garage setting.

The Harley-Davidson Sportster has a specific clutch cable adjustment process that differs from other motorcycles. Proper adjustment ensures smooth shifting and prevents premature wear on clutch components.

Sportster Clutch Adjustment Procedure

To adjust a Sportster clutch cable, start by locating the adjuster and lock nut where the cable meets the handlebar. Loosen the lock nut using a wrench. This allows the adjuster to move freely.

Next, remove any clips or zip-ties securing the clutch cable to expose the adjustment area. Turn the cable adjuster to add or reduce slack as needed. The ideal amount of play is typically 1/8 to 1/4 inch at the lever.

For a quick adjustment on newer Sportsters, riders can use the red pin mechanism. Push the red pin in, collapse the spring, then lock the pin back to secure the adjustment.

Once the proper tension is achieved, tighten the lock nut firmly against the adjuster to prevent it from loosening during rides.

Important Differences and Common Issues

Sportster clutch cables tend to stretch over time, especially on new bikes or after cable replacement. Regular adjustments are necessary during the break-in period.

Many Sportster owners on motorcycle forums report that older models (pre-2004) require different adjustment techniques than newer ones. Vintage Ironhead Sportsters need the adjuster turned inward toward the primary until slack is visible.

Common issues include:

  • Excessive cable friction causing notchy clutch feel
  • Cable binding due to improper routing
  • Premature wear from too-tight adjustment

If the clutch still feels improper after adjustment, inspect for worn clutch plates or damaged springs, as these may require internal repairs beyond cable adjustment.

Testing and Troubleshooting After Adjustment

Hands adjusting a motorcycle clutch cable near the handlebar in a workshop.

After adjusting your motorcycle’s clutch cable, proper testing ensures optimal performance and safety. Verifying engagement and addressing any shifting issues will help maintain your clutch system in good working order.

Checking for Proper Engagement and Disengagement

Start by testing the clutch in a safe, open area. When the lever is fully released, the clutch should engage completely, allowing power to transfer to the rear wheel without slipping.

When pulled in, the clutch should fully disengage, letting the bike idle in gear without moving. Verify the cable free play with a caliper or tape measure to ensure it matches manufacturer specifications.

Test for smooth engagement by slowly releasing the clutch lever while applying gentle throttle. The motorcycle should move forward without jerking or stalling.

Common engagement problems:

  • Clutch slipping (engine revs but bike doesn’t accelerate)
  • Difficulty finding neutral
  • Dragging clutch (bike creeps forward with lever pulled)

Addressing Shifting Problems

Shifting issues often indicate improper clutch adjustment. If you’re experiencing hard shifts or grinding noises, the clutch may not be fully disengaging when the lever is pulled.

Tightening the clutch cable can help if finding neutral is difficult. Conversely, if the clutch is slipping under acceleration, the cable might need loosening to ensure proper engagement.

For recurring shifting problems after adjustment, check for:

  1. Worn clutch plates
  2. Damaged clutch springs
  3. Insufficient oil or wrong type
  4. Bent shift forks

Remember that some motorcycles require clutch adjustment at the clutch itself rather than just at the cable.

Final Adjustments and Safety Check

Make incremental changes to the cable adjuster until you achieve optimal performance. Turn the adjustment post clockwise if you experience clutch slip, and counterclockwise if the clutch doesn’t fully disengage.

After adjustments, secure all lock nuts firmly to prevent them from vibrating loose during operation. Check the clutch cable for any signs of fraying or damage.

Perform these safety checks before riding:

  • Clutch lever has appropriate free play (typically 2-3mm)
  • Lever action feels smooth throughout the pull
  • Bike doesn’t creep when in gear with clutch pulled
  • Engine responds appropriately when clutch is released

Remember that improper clutch-cable slack can damage your clutch components over time, so regular inspection and adjustment are essential maintenance tasks.

Frequently Asked Questions

Hands adjusting the clutch cable on the left handlebar of a motorcycle.

Motorcycle clutch cables require regular adjustment to maintain optimal performance and rider safety. Proper adjustment methods vary slightly between motorcycle brands and styles.

What are the signs that a motorcycle clutch cable needs adjustment?

A clutch cable that needs adjustment often shows clear warning signs. You might notice the clutch lever feels too loose or has excessive free play.

The clutch may start to slip when accelerating or have difficulty engaging fully. This slipping sensation feels like the engine revs without corresponding acceleration.

Strange noises when shifting gears or difficulty finding neutral are also common indicators. If you experience clutch slipping when the bike is under load, immediate adjustment is necessary.

What steps are involved in adjusting a clutch cable on a Harley Davidson motorcycle?

For Harley Davidson motorcycles, locate the clutch cable adjuster near the clutch lever. Loosen the locknut with an appropriate wrench.

Turn the adjuster to increase or decrease free play as needed. Generally, turning clockwise tightens the cable while counterclockwise loosens it.

Check the lever free play periodically during adjustment. The goal is typically 2-3mm of free play before resistance is felt. After achieving proper adjustment, tighten the locknut to secure the setting.

Can you explain the process for tightening a motorcycle clutch cable for optimal performance?

Start by finding the clutch cable adjuster, typically located at the clutch lever or near the engine. Loosen any locking mechanisms before making adjustments.

Turn the adjuster clockwise to tighten the cable and reduce free play. Make small adjustments, checking frequently until you achieve the manufacturer’s recommended free play.

Test the clutch operation after each adjustment. The clutch should engage smoothly without dragging or slipping. Once proper tension is achieved, secure all locking mechanisms to maintain the adjustment.

What is the proper method for adjusting a Honda motorcycle’s clutch cable?

Honda motorcycles typically have two adjustment points – a main adjuster at the clutch lever and a secondary adjuster near the engine. Begin with the lever adjuster for minor adjustments.

Loosen the locknut and turn the adjuster to achieve initial free play of about 10-15mm at the lever end. This measurement varies by model, so consult your owner’s manual.

For major adjustments, use the secondary adjuster near the engine. After adjustment, verify the clutch engages and disengages properly without slipping or dragging.

How can you tell if your motorcycle’s clutch is incorrectly adjusted and too loose?

A too-loose clutch cable creates excessive free play in the lever. The lever will move significantly before engaging the clutch mechanism.

The bike may have difficulty staying in gear or might pop out of gear unexpectedly. This creates unsafe riding conditions and should be addressed immediately.

You might also notice poor performance, as a loose clutch can partially engage when it shouldn’t. This causes premature wear and requires more frequent adjustments over time.

What is the correct way to adjust the clutch cable on a dirt bike?

Dirt bikes typically have an in-line adjuster on the clutch cable. Locate this adjuster, usually positioned between the clutch lever and the engine.

Loosen the locknut and turn the barrel adjuster to achieve proper free play. Most dirt bikes require 2-3mm of free play at the lever before the clutch begins to engage.

Test the adjustment by operating the clutch through its full range of motion. The clutch should disengage completely when pulled and engage fully when released. Readjust as needed until operation is smooth and consistent.

Previous Article

How to Check and Refill Coolant on Your Motorcycle: A Simple Maintenance Guide

Next Article

Inspecting and Maintaining Your Fork Seals on Your Motorcycle: Essential Care Guide for Peak Performance

Write a Comment

Leave a Comment

Your email address will not be published. Required fields are marked *

Subscribe to our Newsletter

Subscribe to our email newsletter to get the latest posts delivered right to your email.
Pure inspiration, zero spam ✨
