Racing technology has given us many innovations, but few have been as game-changing as active suspension. This system replaced traditional springs and shock absorbers with computer-controlled hydraulics that could adjust a car’s height and stiffness in real time.
Active suspension revolutionized motorsport by allowing cars to automatically optimize their aerodynamics and handling through corners, giving drivers unprecedented control over their vehicle’s performance. Teams like Lotus pioneered this technology in the early 1980s, with Ayrton Senna achieving memorable victories at Monaco and Detroit in 1987 using the system.
The technology became so effective that it fundamentally changed how racing cars worked. Instead of relying on fixed suspension settings, engineers could program cars to adapt to different track conditions and racing situations. This advancement sparked intense competition among teams and eventually led to regulatory intervention when officials decided the technology had gone too far.
Key Takeaways
- Active suspension used computer-controlled hydraulics to automatically adjust car height and handling in real time
- The technology gave teams a major competitive advantage by optimizing aerodynamics and tire performance during races
- Racing officials banned active suspension in 1993 because it became too dominant and expensive for the sport

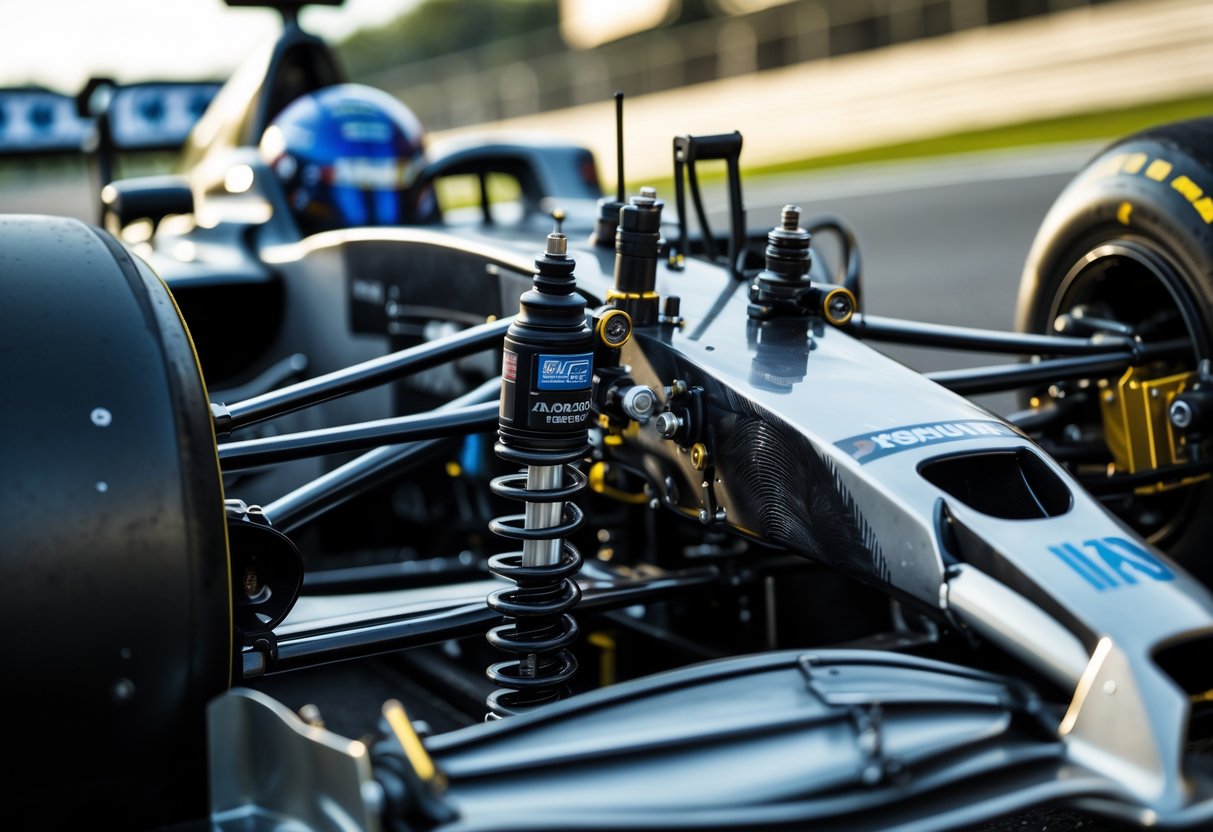

Defining Active Suspension in Racing
Active suspension technology uses computer-controlled systems to manage wheel movement in real-time, while traditional passive systems rely on fixed springs and dampers. The technology transforms how race cars handle different track conditions through precise electronic control.
What Is Active Suspension?
Active suspension is a type of automotive suspension that uses an onboard control system to control the vertical movement of the vehicle’s wheels and axles relative to the chassis. Unlike conventional systems, it actively manages suspension behavior through computer control.
The system continuously monitors track conditions and driving inputs. It then adjusts suspension settings in milliseconds to optimize performance.
Active suspension in Formula 1 uses sensors and computer-controlled actuators to enhance race car performance and handling. The electronic control unit (ECU) processes data from multiple sensors throughout the car.
Racing teams can program different suspension responses for various track sections. The system adapts to braking zones, corners, and straightaways automatically.
Passive Versus Active Suspension
Passive suspension relies entirely on fixed mechanical components like springs and shock absorbers. These components cannot change their characteristics during a race.
Active suspension uses hydraulic cylinders and electronic controls to modify suspension behavior instantly. The hydraulic system can adjust ride height, stiffness, and damping rates while the car moves.
| Passive Suspension | Active Suspension |
|---|---|
| Fixed spring rates | Variable suspension settings |
| Static damper settings | Real-time damper adjustments |
| Manual setup changes only | Computer-controlled modifications |
| Limited adaptability | Responds to track conditions |
Passive systems offer consistent but unchanging performance. Active systems provide optimal settings for each driving situation.
The electronic control unit in active systems processes hundreds of inputs per second. Passive systems cannot react to changing conditions without manual intervention.
Core Components and Technologies
The electronic control unit (ECU) serves as the brain of active suspension systems. It receives data from accelerometers, position sensors, and pressure monitors throughout the vehicle.
Hydraulic cylinders replace traditional shock absorbers in most racing active suspension setups. These cylinders can extend or compress based on electronic commands from the ECU.
The hydraulic system includes pumps, accumulators, and control valves. High-pressure hydraulic fluid powers the rapid suspension movements needed for racing applications.
Position sensors monitor wheel travel and body movement constantly. Accelerometers detect forces acting on the car during acceleration, braking, and cornering.
Dampers in active systems can vary their resistance electronically. The suspension system adjusts compression and rebound rates based on driving conditions and programmed parameters.
Origins and Early Development
Active suspension technology emerged from the intersection of mechanical engineering principles and racing’s relentless pursuit of performance advantages. The concept evolved through theoretical foundations, pioneering implementations by visionary engineers like Colin Chapman, and rigorous testing in competitive motorsport environments.
Conceptual Foundations
The theoretical basis for active suspension systems originated from control theory and mechanical engineering principles developed in the mid-20th century. Engineers recognized that traditional passive suspension systems created inherent compromises between comfort and performance.
Early concepts focused on using hydraulic actuators controlled by electronic systems to replace conventional springs and dampers. This approach promised precise control over wheel movement and vehicle dynamics.
The fundamental principle involved using sensors to monitor vehicle conditions continuously. These sensors would detect changes in road surface, vehicle speed, and driving conditions in real-time.
Control algorithms could then adjust suspension characteristics instantaneously. This represented a revolutionary shift from fixed suspension settings to adaptive systems that responded to changing conditions.
The technology drew inspiration from industrial automation and aircraft control systems. Engineers adapted these principles to automotive applications, laying the groundwork for racing implementations.
Colin Chapman’s Innovations
Colin Chapman, founder of Lotus, pioneered many active suspension concepts during the 1960s and 1970s. His engineering philosophy emphasized lightweight construction and innovative solutions to performance challenges.
Chapman’s work with ground effect aerodynamics highlighted the critical importance of consistent ride height control. Ground effect cars generated maximum downforce when maintained at precise distances from the track surface.
Traditional suspension systems allowed significant ride height variations during cornering and acceleration. This inconsistency reduced aerodynamic efficiency and compromised the aerodynamic device performance that Chapman’s designs relied upon.
His team began experimenting with hydraulic suspension systems that could maintain constant ride height regardless of aerodynamic loads. These early systems used simple hydraulic circuits without electronic control.
Chapman’s innovations demonstrated the potential benefits of active control. His work established the foundation for more sophisticated systems that would follow in Formula 1 racing.
Experimental Prototypes in Racing
Formula 1 teams began serious development of active suspension prototypes in the early 1980s. These systems represented significant technological investments and engineering challenges.
Early experimental prototypes used basic hydraulic actuators controlled by primitive electronic systems. Teams focused on maintaining consistent ride height and reducing aerodynamic disturbances during high-speed cornering.
The prototypes incorporated multiple sensors to monitor wheel position, vehicle acceleration, and aerodynamic loads. This sensor data fed into control units that adjusted hydraulic pressure in real-time.
Testing revealed both tremendous potential and significant challenges. The systems could dramatically improve aerodynamic consistency but required extensive development to achieve reliability.
Racing teams invested heavily in prototype development throughout the 1980s. Their experimental work laid the foundation for the sophisticated active suspension systems that would later dominate Formula 1 competition.
Breakthroughs in Formula 1
Active suspension technology transformed Formula 1 through pioneering work by Lotus in the 1980s and Williams’ championship-winning dominance in the early 1990s. These teams developed computer-controlled systems that revolutionized car performance and changed racing forever.
Lotus and the First Active Cars

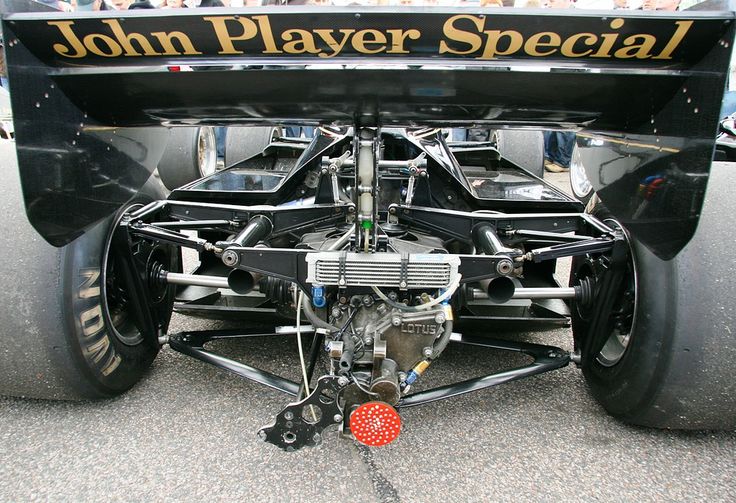

Lotus introduced the first active suspension system to Formula 1 in 1983 with the Type 92. The spring-less machine used hydraulics instead of traditional suspension.
Peter Wright led the development at Lotus. The system replaced mechanical springs with computer-controlled hydraulics that adjusted the car’s ride height in real time.
Early results were mixed. Nigel Mansell finished 12th at Rio and Long Beach but remained unconvinced by the system’s inconsistencies.
The breakthrough came in 1987 when Ayrton Senna joined Lotus. Senna won back-to-back victories at Monaco and Detroit with the Type 99T.
The Monaco victory was particularly impressive. Senna finished the race “feeling brand new” while other drivers struggled with fatigue from the street circuit’s bumps.
Key advantages included:
- Consistent aerodynamic performance
- Better tire management
- Reduced driver fatigue
- Precise ride height control
Williams’ Dominance and the FW14
Williams transformed active suspension from experimental technology into a championship-winning weapon with the FW14 in 1991. The team’s systematic approach produced immediate results.
Nigel Mansell and Nelson Piquet drove the FW14 to five victories in 1991. The car’s active suspension allowed consistent performance across different track conditions.
Williams used a more pragmatic ‘reactive’ suspension approach compared to Lotus’s full active system. This proved more reliable and effective in race conditions.
The FW14 featured advanced hydraulic actuators at each wheel. Computer systems monitored track conditions and adjusted suspension settings thousands of times per second.
Mansell particularly benefited from the technology. The system reduced physical strain during long races and provided consistent handling characteristics.
The car’s success demonstrated active suspension’s potential when properly developed and integrated with other systems.
The FW15C and Technical Advancements
The Williams FW15C represented the pinnacle of active suspension technology in 1993. This car combined multiple advanced systems into one dominant package.
Alain Prost and Damon Hill drove the FW15C to 10 victories from 16 races. The car featured not only active suspension but also traction control and a semi-automatic gearbox.
Technical innovations included:
- Four-wheel active suspension
- Launch control systems
- Anti-lock braking systems
- Fully automatic transmission options
- Advanced telemetry systems
The semi-automatic gearbox worked seamlessly with the active suspension. Drivers could focus on racing lines while computers managed gear changes and suspension adjustments.
Prost won the 1993 championship with ease. The FW15C’s technological advantage was so significant that competitors struggled to match its performance.
The system was so effective that it contributed to Formula 1’s decision to ban active suspension after 1993. The FIA felt the technology gave excessive advantages to teams that could afford it.
Technical Architecture and Mechanisms
Active suspension systems in modern race cars combine electronic control units with hydraulic actuators and advanced sensors to actively manage vehicle dynamics. These systems replace traditional springs with computer-controlled hydraulic cylinders that respond instantly to track conditions.
Role of Sensors and ECUs
Electronic control units serve as the brain of active suspension systems. They process data from multiple sensors positioned throughout the vehicle at speeds measured in milliseconds.
Key sensor types include:
- Accelerometers measuring vertical, lateral, and longitudinal forces
- Wheel speed sensors detecting rotation changes
- Ride height sensors monitoring ground clearance
- Steering angle sensors tracking driver input
The ECU analyzes this sensor data to predict vehicle behavior before it occurs. It calculates optimal suspension responses based on current track conditions, vehicle speed, and driver actions.
Modern systems process over 1,000 calculations per second. This allows the electronic control unit to adjust each wheel independently in real-time.
Hydraulic and Electronic Systems
Hydraulic systems provide the muscle behind active suspension control. High-pressure hydraulic cylinders replace conventional springs and dampers at each wheel.
System components include:
- Hydraulic pump generating system pressure
- Accumulator storing pressurized fluid
- Control valves directing fluid flow
- Hydraulic cylinders at each wheel corner
The electronic control unit commands these hydraulic components through servo valves. These valves open and close in precise sequences to control fluid flow to each hydraulic cylinder.
Pressure levels typically range from 2,000 to 3,000 PSI. This high pressure enables rapid suspension adjustments that mechanical systems cannot match.
Integration of Dampers and Ride Height Control
Active systems eliminate traditional dampers by using hydraulic cylinders for both spring and damping functions. The ECU controls ride height by adjusting hydraulic pressure in each cylinder independently.
Ride height benefits include:
- Aerodynamic optimization through precise ground clearance control
- Cornering enhancement via body roll elimination
- Braking stability through front-to-rear balance adjustment
The system maintains optimal ride height regardless of fuel load, tire wear, or track surface changes. It can lower the vehicle at high speeds for reduced drag or raise it over curbs and bumps.
Damping characteristics adjust continuously based on track conditions. The hydraulic cylinder can provide soft damping for comfort or firm damping for maximum control within the same corner.
Safety Features and Driver Aids
Active suspension integrates with other vehicle safety systems to enhance overall performance. The ECU communicates with traction control and anti-lock brake systems to coordinate responses.
Integrated systems include:
- Traction control working with suspension to optimize tire contact
- Anti-lock brakes coordinating with ride height adjustments
- Anti-roll bar functions replicated through hydraulic control
Emergency failsafe modes activate when system malfunctions occur. The suspension defaults to a preset configuration that maintains basic vehicle control.
Driver aids benefit from active suspension data. The system shares sensor information with other vehicle systems, improving their effectiveness and response times.
Impact on Aerodynamic Performance
Active suspension systems transformed how race cars managed airflow and downforce by maintaining optimal ride height and body positioning. These technologies allowed teams to maximize ground effect tuning while keeping aerodynamic devices working at peak efficiency throughout changing track conditions.
Aerodynamic Efficiency and Downforce
Active suspension systems enabled race cars to maintain consistent downforce levels by controlling body pitch and roll. Traditional passive systems allowed cars to dive under braking or squat during acceleration, disrupting airflow patterns.
The technology adjusted ride height up to 500 times per second. This prevented aerodynamic stall conditions that reduced downforce by 20-30% in conventional setups.
Teams could optimize front and rear wing angles knowing the car would stay level. Active systems improved aerodynamic efficiency by eliminating the compromise between different track sections.
Williams’ FW14B and FW15C demonstrated these benefits clearly. The cars generated 15% more downforce in corners compared to passive suspension rivals.
Key aerodynamic improvements included:
- Consistent wing performance across speed ranges
- Reduced drag from body attitude changes
- Better airflow management over the car’s surface
- Optimal aerodynamic device positioning
Maximizing Ground Effect
Ground effect aerodynamics required precise control of the car’s underfloor clearance. Active suspension systems maintained the ideal gap between the car’s floor and track surface.
Even small changes in ride height dramatically affected underbody airflow. A 5mm variation could reduce ground effect downforce by 10-15%.
Real-time suspension adjustments kept the venturi tunnels working efficiently. The system compensated for fuel load changes, tire wear, and track surface variations.
Teams programmed different ride height maps for qualifying and race conditions. This allowed maximum ground effect during low-fuel qualifying runs while maintaining stability with heavy fuel loads.
| Condition | Ride Height Setting | Ground Effect Gain |
|---|---|---|
| Qualifying | 8mm front, 12mm rear | +25% downforce |
| Race Start | 12mm front, 16mm rear | +10% downforce |
| Race End | 10mm front, 14mm rear | +18% downforce |
Effect on Tire Performance and Handling
Active suspension systems optimized tire contact patches by controlling wheel loading. This improved both mechanical grip and aerodynamic performance through better airflow around the wheels.
The technology reduced tire scrubbing in corners by maintaining optimal camber angles. Less tire deformation meant cleaner airflow to rear aerodynamic devices.
Aerodynamic forces impact handling characteristics, and active systems helped balance these effects. Teams could adjust suspension settings to complement downforce levels at different speeds.
Tire temperatures stayed more consistent with active control. Even tire wear improved aerodynamic efficiency by maintaining predictable airflow patterns around the wheel wells.
The system also prevented porpoising effects that disrupted both tire grip and aerodynamic performance. Cars remained stable at high speeds while maximizing downforce generation.
Performance benefits:
- 10% improvement in cornering speeds
- Reduced tire wear from consistent loading
- Better aerodynamic balance between front and rear
- Improved straight-line stability at high speeds
Controversy, Regulation, and Ban
Active suspension created major competitive imbalances in Formula 1 racing. The technology gave some teams huge advantages while forcing smaller teams out due to costs. The FIA banned these systems in 1994 to restore competitive balance.
Competitive Advantages and Criticisms
Active suspension gave teams with the technology a massive edge over competitors. Williams dominated the 1992 and 1993 seasons using their advanced active suspension system. The team won both championships in 1992 and 10 out of 16 races in 1993.
The system allowed F1 cars to maintain perfect ride height at all times. This gave drivers better aerodynamic efficiency and tire contact with the track. Cars with active suspension could corner faster and maintain higher speeds through turns.
Teams without the technology struggled to compete. The high costs of active systems forced smaller teams out. Many teams could not afford to develop or maintain these complex systems.
The technology created an unfair playing field. Rich teams could invest millions in active suspension while poorer teams were left behind. This led to boring races where the same cars always won.
FIA Regulations and the Outlawing of Active Suspension
The FIA acted quickly to address the competitive imbalance. In 1993, the FIA announced a ban on active suspensions as part of broader rule changes. The ban took effect for the 1994 season.
The FIA banned active suspension along with other driver aids. Traction control, ABS, and launch control were also eliminated in the same rule change. Officials wanted to put more emphasis on driver skill.
The regulation change forced teams to return to passive suspension systems. These systems used only springs and dampers without electronic control. F1 cars became harder to drive and less predictable.
The ban aimed to reduce costs across the sport. Teams no longer needed to spend millions developing complex hydraulic systems. This helped level the playing field between rich and poor teams.
Legacy on Racing Development
Active suspension left a lasting impact on motorsport technology. The technology’s influence can be seen in modern F1 cars and other racing series. Engineers learned valuable lessons about electronic control systems.
The ban sparked ongoing debates about technology in racing. Some drivers and engineers support bringing active suspension back. They argue it could solve modern problems like porpoising in current F1 cars.
Mercedes driver George Russell supports active suspension’s return. He believes it would make cars faster and safer by optimizing ride height for every corner. Other engineers agree the technology could help manage aerodynamic issues.
However, critics worry about costs and competitive balance. Former driver Martin Brundle opposes active suspension’s return. He argues it would require teams to completely redesign their cars at huge expense.
The technology continues to develop in other motorsport categories. MotoGP and endurance racing still explore active suspension applications. These series show how the banned F1 technology evolved elsewhere.
Legacy and Influence Beyond F1
Active suspension technology from Formula 1 transformed automotive engineering far beyond the racetrack. The innovations developed for F1 cars directly shaped modern road vehicle systems and established new principles for racing engineering across multiple motorsports.
Influence on Road Car Technology
Modern luxury cars owe much of their advanced suspension technology to F1’s active suspension research. Mercedes-Benz introduced ABC (Active Body Control) in the early 2000s, using hydraulic systems similar to those banned from F1.
BMW’s Adaptive M Suspension uses electronic dampers that adjust automatically. These systems trace their lineage back to the McLaren and Williams active suspension programs of the 1990s.
Current semi-active dampers represent a scaled-down version of F1’s full active systems. They monitor road conditions and adjust damping forces in real-time.
Key road car technologies derived from F1 active suspension:
- Electronic stability control
- Adaptive cruise control integration
- Real-time suspension monitoring
- Predictive damping systems
Audi’s air suspension systems use many of the same principles that F1 teams developed. The cars can lower themselves at highway speeds for better aerodynamics, just like F1 cars did in the early 1990s.
Tesla’s adaptive air suspension adjusts ride height based on GPS location data. This mirrors how F1 active systems adapted to specific track sections.
Lessons for Modern Racing Engineering
Active suspension’s impact on motorsport extends well beyond Formula 1. IndyCar racing now uses sophisticated electronic suspension systems that trace their development to F1’s banned technology.
NASCAR’s Next Gen car includes advanced suspension monitoring. Teams use data logging systems that evolved from F1’s active suspension telemetry.
Modern racing applications include:
- Real-time suspension data analysis
- Predictive maintenance systems
- Driver feedback integration
- Performance optimization algorithms
MotoGP bikes now feature electronic suspension adjustment during races. These systems use similar feedback loops that F1 teams pioneered with active suspension technology.
The inerter device, developed at Cambridge University, revolutionized suspension across multiple racing series. This mechanical network element improves suspension performance without complex electronics.
Driver aids in modern racing cars use principles learned from active suspension development. The integration of multiple vehicle systems became standard practice after F1’s experiments with comprehensive vehicle control.
Frequently Asked Questions
Active suspension systems transformed racing through decades of innovation, from early hydraulic systems to computer-controlled actuators. The technology faced regulatory challenges that shaped its adoption across different racing series.
How has active suspension technology evolved in the context of motorsports?
Active suspension in motorsports began with basic hydraulic systems in the early 1980s. Teams initially used simple height adjustments to improve aerodynamic performance.
The technology advanced rapidly through the late 1980s and early 1990s. Engineers developed sophisticated computer-controlled systems with multiple sensors and actuators.
Modern active suspension uses electronic sensors and hydraulic actuators to monitor track conditions in real-time. These systems can adjust suspension settings hundreds of times per second.
Current systems in touring car racing help manage vehicle dynamics during close-quarter racing through varied track layouts. The technology has become more reliable and cost-effective with advances in hydraulics and electronics.
What are the key milestones in the development of active suspension systems for racing cars?
Active suspension first appeared in Formula 1 in 1981 when Lotus developed the system for ground effect aerodynamics. The team needed controlled ride height to maximize downforce from side skirts.
Lotus introduced the first fully active car, the Type 92, in 1983. This spring-less machine used hydraulic actuators controlled by an onboard computer system.
The technology gained momentum in 1987 when Ayrton Senna joined Lotus. His victories at Monaco and Detroit demonstrated active suspension’s potential for race-winning performance.
Williams refined the concept with their “reactive” suspension system. This approach proved highly successful in Nigel Mansell‘s dominant 1992 championship campaign.
Which racing series have permitted the use of active suspension, and what have been the outcomes?
Formula 1 allowed active suspension from 1981 until its ban in 1994. Teams like Lotus and Williams achieved significant competitive advantages during this period.
The technology proved so effective that the FIA banned it in 1994 due to high costs forcing smaller teams out of competition. The system created an uneven playing field between well-funded and budget teams.
Touring car racing currently
