Keeping your motorcycle engine running smoothly requires regular maintenance, and one crucial task is checking valve clearance. Valves play a vital role in your engine’s four-stroke process by controlling the flow of air, fuel, and exhaust gases in and out of the combustion chamber. When valves aren’t properly adjusted, your motorcycle can experience poor performance, reduced fuel efficiency, and even serious engine damage.
Checking and adjusting valve clearances is considered routine maintenance on high-performance four-stroke engines and is well within the capability of most motorcycle owners with basic mechanical skills. This maintenance task helps ensure your engine operates at peak efficiency and prevents costly repairs down the road. While it might seem intimidating at first, following a systematic approach with the right tools makes the process straightforward.
Regular valve clearance checks are especially important for performance motorcycles but benefit all bikes. The process involves measuring the gap between the valve stem and the cam that operates it when the engine is cold, then making adjustments if the clearance falls outside manufacturer specifications. This critical maintenance step keeps your motorcycle running smoothly for years to come.
Key Takeaways
- Valve clearance checks should be performed when the engine is completely cold using feeler gauges to measure the precise gap between components.
- Proper valve adjustment prevents engine performance issues, excessive noise, and potential damage while improving fuel efficiency and power delivery.
- Regular maintenance according to your motorcycle’s service schedule helps extend engine life and maintain optimal performance between major service intervals.
Understanding Valve Clearance
Valve clearance is a critical measurement in motorcycle engines that directly impacts performance, reliability, and longevity. This small gap ensures proper valve operation throughout varying engine temperatures and operating conditions.
What Is Valve Clearance?
Valve clearance refers to the small gap between the end of the valve stem and the component that activates it (cam lobe, rocker arm, or tappet). This gap is measured in thousandths of an inch or millimeters and must be precisely set according to manufacturer specifications.
When an engine is cold, metal components are contracted. As the engine heats up during operation, these parts expand. The valve clearance provides the necessary space to accommodate this thermal expansion.
Different motorcycle engines use various valve train designs including direct actuation, rocker arms, or hydraulic tappets. Each design requires specific clearance measurements to function properly.
Correct valve clearance is sometimes called “valve lash” in technical documentation. This measurement is always checked when the engine is completely cold for accuracy and consistency.
Importance of Correct Valve Clearance
Proper valve clearance ensures optimal engine operation in several ways. It allows valves to fully close during the combustion cycle, maintaining proper compression and preventing power loss.
Correct clearance also enables complete valve opening, maximizing air-fuel intake and exhaust flow. This directly affects engine power, fuel efficiency, and emissions.
The clearance acts as a safety buffer, preventing valve-to-piston contact that could cause catastrophic engine damage. As engines heat up, this buffer becomes critical to maintain valve timing integrity.
Many performance issues like rough idling, power loss, or difficult starting can be traced to incorrect valve clearance. Regular clearance checks are considered routine maintenance for high-performance motorcycles.
Types of Valve Trains
Motorcycle engines employ several valve train designs, each with distinct clearance adjustment methods:
Screw-and-locknut systems use a simple adjustment mechanism where a locknut secures an adjustment screw at the proper setting. These are common in many motorcycles and relatively easy to adjust.
Shim-under-bucket designs place small metal discs (shims) between the valve stem and bucket follower. Adjustments require removing and replacing shims of different thicknesses.
Hydraulic tappets use oil pressure to automatically adjust clearance, eliminating the need for manual adjustments. These systems maintain zero clearance during operation.
Some engines use rocker arms that pivot on shafts or studs to transfer cam motion to valves. Adjustments are typically made where the rocker contacts the valve stem.
Consequences of Incorrect Clearance
Excessive valve clearance creates abnormal noise—the characteristic “ticking” sound many riders recognize. This noise indicates potential valve train component damage and accelerated wear on cam lobes and followers.
Insufficient clearance prevents valves from fully closing, leading to compression loss, reduced power, and poor fuel economy. It can also cause valves to run hotter, potentially leading to valve burning or warping.
Valve clearances directly impact engine timing. Incorrect settings can throw off carefully engineered valve events, resulting in poor performance across the RPM range.
In extreme cases, zero clearance can prevent thermal expansion, causing valves to remain partially open. This leads to rapid valve damage and potential catastrophic engine failure.
Regular inspection and adjustment of valve clearance significantly extends engine life and maintains optimal performance throughout the motorcycle’s service life.
When to Perform a Valve Clearance Check
Knowing the right timing for valve clearance checks is crucial for maintaining your motorcycle’s performance and extending engine life. Regular inspections prevent engine damage and maintain optimal power delivery.
Recommended Inspection Intervals
Most motorcycle manufacturers specify valve clearance inspection intervals in their factory service manuals. These intervals typically range from 10,000 to 30,000 miles (16,000 to 48,000 km) depending on the motorcycle make and model.
Sport bikes and high-performance motorcycles generally require more frequent checks, often every 12,000 miles. Cruisers and touring bikes may have longer intervals, sometimes up to 24,000 miles.
New motorcycles should have their first valve clearance check earlier than the manual suggests. This is because valves often “settle in” during the first few thousand miles of operation.
Important: Never skip scheduled valve inspections even if the engine seems to be running well. Prevention is always less expensive than repair.
Warning Signs of Incorrect Valve Clearance
Several symptoms indicate your motorcycle may need a valve adjustment before the scheduled maintenance:
- Unusual engine noises – Ticking or tapping sounds, especially at idle
- Reduced power output – Noticeable decrease in acceleration or top speed
- Poor fuel economy – Unexpected increase in fuel consumption
- Rough idle – Engine runs unevenly at idle or struggles to maintain steady RPM
- Starting difficulties – Hard starting when the engine is cold or hot
- Backfiring or popping – Especially during deceleration
These symptoms may indicate valves that are too tight (insufficient clearance) or too loose (excessive clearance). Both conditions can cause significant engine damage if left unchecked.
Routine Maintenance Schedules
Incorporating valve clearance inspections into your regular motorcycle maintenance schedule is essential. Many riders find it convenient to check valve clearance when performing other major service tasks.
Consider checking valves when:
- Changing timing belts or chains
- Performing top-end rebuilds
- After major engine work
- When reaching the mileage specified in your workshop manual
Environmental and riding conditions also affect inspection frequency. Motorcycles operated in harsh conditions (extreme temperatures, dusty environments, frequent short trips) should have more frequent valve checks.
Racing or aggressive riding accelerates valve wear and necessitates more frequent inspections. Conversely, bikes used primarily for casual riding might be able to follow standard service intervals.
Tools and Equipment Needed
Proper valve clearance checks require specific tools to ensure accuracy and prevent damage to your motorcycle’s engine. Having the right equipment will make this maintenance task much more efficient and reliable.
Essential Tools
To perform a valve clearance check, you’ll need several basic tools that most motorcycle owners already have in their toolbox. A complete socket set with both metric and standard sizes is necessary since most motorcycles use metric measurements. Metric wrenches are particularly important for accessing and removing valve covers.
A service manual specific to your motorcycle model is crucial. It will provide exact specifications and procedures for your engine type.
You’ll also need:
- Torque wrench
- Screwdrivers (flathead and Phillips)
- Ratchet and extension bars
- Clean rags
- Flashlight or work light
- Gasket scraper
A container for small parts will help keep everything organized during the process.
Specialty Gauge Types
Feeler gauges are the most critical specialty tools for checking valve clearance. These thin metal strips come in precise thicknesses, typically measured in thousandths of an inch or hundredths of a millimeter. A good set should include sizes from 0.05mm to 1.00mm.
There are two main types of feeler gauges:
- Wire-type feeler gauges: More flexible and can be better for accessing tight spaces
- Flat blade feeler gauges: Traditional style, easier to read measurements
Some mechanics prefer lash gauges which are specialized tools designed specifically for valve clearance checks. These often have angled ends to reach difficult spots.
For bikes with shim-type valve adjustments, a shim thickness gauge or micrometer may be necessary to measure replacement shims accurately.
Recommended Lubricants and Cleaning Supplies
Proper cleaning is essential before and after checking valve clearance. Brake cleaner or carburetor cleaner works well for degreasing valve components without leaving residue. Always work in a well-ventilated area when using these products.
Engine oil is needed for lubrication after adjustments. Use the manufacturer’s recommended grade for your motorcycle.
Other important supplies include:
- Assembly lube for valve components
- Valve cover gasket sealant (if specified by manufacturer)
- Lint-free shop towels
- Compressed air (for blowing out debris)
- Parts cleaning tray
- Rubber gloves to protect hands
Proper disposal containers for used chemicals and oil are important for environmental safety. Never dispose of these materials in household trash or drains.
Preparation and Safety Precautions
Before starting any valve clearance check, proper preparation and safety measures are essential. Taking the right steps beforehand can make the process smoother and prevent potential injuries or damage to your motorcycle.
Preparation Steps
Gather all necessary tools before beginning the valve clearance check. You’ll need:
- Feeler gauges in the appropriate sizes for your motorcycle
- Basic hand tools (socket set, screwdrivers, wrenches)
- Service manual specific to your motorcycle model
- Clean rags and a catch pan for oil
- Valve adjustment tools (if needed)
Find a clean, well-lit workspace with enough room to move around the motorcycle. A garage or covered area works best to protect the motorcycle from dust and debris.
Place the motorcycle on a secure stand to keep it stable throughout the process. The motorcycle should be positioned to provide easy access to the cylinder head cover.
Disconnect the battery’s negative terminal to prevent any electrical issues while working on the engine.
Ensuring Engine is Cool
The valve clearance check must always be performed on a cold engine. This is non-negotiable, as valve adjustments and measurements are made when the engine is completely cold.
Allow your motorcycle to sit overnight or for at least 4-6 hours after running to ensure it has completely cooled down. Attempting to check valve clearance on a warm or hot engine will result in inaccurate measurements.
Temperature affects metal expansion in motorcycle engines, which changes the clearance measurements. Manufacturer specifications are always based on a cold engine.
If you’ve recently ridden the motorcycle, verify the engine is cool by carefully touching the engine case. It should feel cool to the touch, not warm.
Safety Gear and Procedures
Always wear appropriate safety gear, including:
- Nitrile gloves to protect hands from oils and chemicals
- Safety glasses to shield eyes from debris or fluids
- Clean, close-fitting clothing that won’t get caught in engine parts
Be mindful of engine oil levels and potential leaks when removing the cylinder head cover. Place a catch pan under the work area to collect any spills.
Keep a fire extinguisher nearby as a precaution when working with any vehicle components.
Ensure proper ventilation in your workspace to avoid breathing in fumes from oils or cleaners that might be used during the process.
Take your time and work methodically. Rushing through valve clearance checks can lead to mistakes that might damage the motorcycle engine.
Accessing the Valve Train
Before checking valve clearance, you need to expose the valve train. This process involves removing several components to gain access to the cylinder head where the valves are located.
Removing the Seat and Fuel Tank
Start by removing the motorcycle seat using the appropriate release mechanism or bolts. This varies by model, so consult your owner’s manual for specific instructions.
Next, disconnect the fuel lines by pinching the quick-release clips and gently pulling them apart. Place a shop towel underneath to catch any fuel drips.
For most motorcycles, you’ll need to remove the fuel tank mounting bolts. These are typically located at the front and rear of the tank. Carefully lift the tank once all bolts are removed.
On dirt bikes and ATVs, the process is usually simpler as these vehicles often have more accessible designs. Street bikes may require removing side panels or fairings first.
Taking Off the Cylinder Head Cover
The cylinder head cover (also called valve cover) is secured by several bolts around its perimeter. These bolts must be removed in a specific sequence to prevent warping.
Start by loosening all bolts in a criss-cross pattern, then remove them completely. Some models have different length bolts, so arrange them in order for reassembly.
Gently pry the cover loose using a plastic scraper tool. Never use a metal screwdriver as it can damage the sealing surfaces.
Be prepared for some oil spillage when removing the cover. Place rags around the engine to catch any drips.
On multi-cylinder engines, you may need to remove multiple covers to access all valves.
Examining Cam Lobes and Components

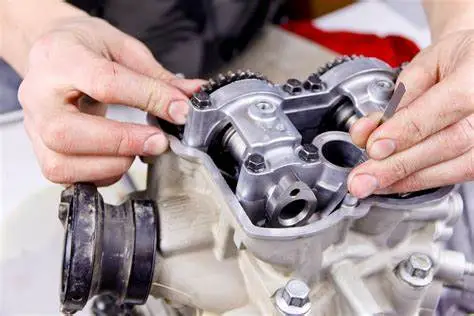

Once the cylinder head cover is removed, the valvetrain components are visible. Identify the cam lobes that operate the valves by rotating the engine slowly.
Inspect the cam lobes for any obvious signs of wear like pitting, scoring, or flat spots. These indicate potential problems that should be addressed.
Look for proper oil coating on all components. Dry parts may indicate oil flow issues.
Check the valve springs for any visible damage or rust. They should appear uniform in height and tension.
For accurate valve clearance checks, position the cam lobes so they’re not pressing on the valves. This usually means rotating the engine to specific positions as indicated in your service manual.
Different engine designs (single cylinder dirt bikes vs. multi-cylinder street bikes) will have varying valvetrain layouts, but the basic components remain similar.
Locating and Identifying Valves
Before making adjustments, you need to know exactly where your valves are located and how to tell them apart. Proper identification prevents mistakes that could damage your engine.
Intake vs. Exhaust Valves
Motorcycles have two types of valves: intake and exhaust. Intake valves are typically larger in diameter than exhaust valves because they need to flow more air/fuel mixture into the cylinder. They’re usually located on the side of the cylinder head facing the air filter.
Exhaust valves are smaller and often have a darker appearance due to heat exposure. They face the exhaust port side of the engine. Most motorcycle engines use two intake and two exhaust valves per cylinder, though some designs vary.
The valve clearance specifications differ between intake and exhaust valves. Exhaust valves generally require larger clearances because they operate at higher temperatures and expand more during operation.
Understanding Valve Layout
Valve arrangements follow specific patterns depending on your motorcycle’s engine design. In inline engines, valves are typically arranged in a row along the cylinder head. V-twin engines have valves positioned in a V-formation matching the cylinder layout.
Most modern motorcycles use an overhead cam (OHC) design where the camshaft sits directly above the valves. You’ll need to remove the valve cover to access them.
The engine must be set to top dead center for the cylinder you’re working on. This positions the valves in the proper orientation for checking clearances.
Look for timing marks on your engine that align when the piston is at TDC. Your service manual will specify which cylinder to start with.
Identifying Shim and Bucket or Screw and Locknut Setups
Motorcycles use two main valve adjustment systems: shim-and-bucket or screw-and-locknut. Identifying which system your bike uses is crucial for performing proper adjustments.
Shim-and-bucket systems feature small metal discs (shims) that sit on top of lifter buckets. The shim diameter must match your specific engine model. These systems require special tools to compress the valve spring and remove the shim.
Screw-and-locknut systems are more straightforward, with an adjustment screw and a locking nut that secures it in place. You’ll see a slotted screw head with a locknut threaded onto it.
Most modern sportbikes use shim-and-bucket systems, while many cruisers and older motorcycles use screw-and-locknut arrangements. Your service manual will specify which type your motorcycle has.
Setting the Engine to Top Dead Center
Finding Top Dead Center (TDC) is a critical first step in checking valve clearance. This position ensures the piston is at the top of its stroke and the valves are fully closed, allowing for accurate measurements.
Locating TDC
To find TDC, start by removing your gas tank for better access to the engine. Look for timing marks on your motorcycle’s crankshaft pulley or flywheel that indicate TDC position. These marks typically align with a pointer or notch on the engine case.
Turn the crankshaft slowly in the normal direction of engine rotation. You can do this by using a socket wrench on the crankshaft bolt or by shifting the motorcycle into a high gear and rotating the rear wheel.
Most motorcycles have a small inspection port or plug on the engine case that allows you to insert a timing tool or thin screwdriver to help locate TDC. This helps confirm when the piston reaches its highest point.
Identifying the Compression Stroke
Not all TDC positions are equal – you need to find TDC on the compression stroke, not the exhaust stroke. Both positions have the piston at the top, but only one is correct for valve adjustment.
On a four-stroke engine, the crankshaft completes two full rotations for every combustion cycle. This means the piston reaches TDC twice during the cycle, but valve clearance adjustments must be done at TDC on the compression stroke.
To identify the compression stroke, remove the spark plug and place your thumb or a piece of paper over the spark plug hole. Rotate the engine slowly until you feel air pressure pushing against your thumb. This pressure indicates the compression stroke.
Alternatively, observe both valves while rotating the engine. When both the intake and exhaust valves are fully closed, and the piston is at TDC, you’ve found the compression stroke.
Ensuring Proper Piston Position
Once you’ve located TDC on the compression stroke, confirm this position by checking the timing marks on your crankshaft. These should align perfectly with the reference pointer.
For multi-cylinder engines, you need to determine which cylinder is at TDC. Your service manual will specify which cylinder to set at TDC first and the correct rotation sequence for checking all valves.
Some motorcycles have a specific TDC tool that fits into the spark plug hole to physically detect when the piston reaches its highest position. This tool can be helpful for precise positioning.
Be careful not to rotate the engine past TDC while making adjustments. If you accidentally go too far, rotate the engine a full 360 degrees and approach TDC again slowly to ensure accuracy.
Measuring Valve Clearance
Accurate valve clearance measurement is critical to your motorcycle’s performance and longevity. The process requires precision tools and careful technique to ensure readings are reliable.
Inserting the Feeler Gauge
The feeler gauge is your primary tool for measuring valve clearance. Select the appropriate thickness gauge based on your motorcycle’s specifications, which can be found in your service manual.
Place the feeler gauge between the valve stem end and the adjuster (rocker arm or tappet). The gauge should slide between these components with slight resistance – often described as a “light drag” feeling. If it slides too easily, the clearance is too wide. If you can’t insert it at all, the clearance is too tight.
Try different gauge thicknesses until you find the one that fits with the correct amount of resistance. Some mechanics use lash gauges for more consistent readings, especially on high-performance engines.
Interpreting Measurement Results
Your measurement results should be compared against the manufacturer’s specifications. Most motorcycles have different clearance requirements for intake and exhaust valves.
Typical Clearance Ranges:
- Intake valves: 0.002″-0.008″ (0.05-0.20mm)
- Exhaust valves: 0.008″-0.012″ (0.20-0.30mm)
If your readings fall within specification, no adjustment is needed. If they’re outside the acceptable range, adjustment will be necessary. Too tight clearance (smaller than spec) can cause valve lift issues and burnt valves. Too loose clearance creates excessive noise and potential valve train damage.
Remember that valve clearances should be checked when the engine is cold, as thermal expansion affects measurements.
Recording Valve Clearance Readings
Document all your valve clearance measurements systematically to track changes over time. Create a simple table or chart with columns for each valve.
Sample Recording Format:
| Valve Position | Specification | Actual Measurement | Adjustment Needed? |
|---|---|---|---|
| Intake #1 | 0.004″-0.006″ | 0.005″ | No |
| Exhaust #1 | 0.008″-0.010″ | 0.007″ | Yes |
Mark any measurements that fall outside specifications for follow-up adjustment. Many experienced mechanics take measurements twice to confirm readings before making adjustments.
Date your records and keep them with your service documentation. This historical data helps identify patterns of valve clearance changes that might indicate other engine issues. Some engines require checking valve clearances more frequently than others, especially high-performance or racing motorcycles.
Adjusting Valve Clearance
Once you’ve checked your valve clearance and found it outside of specifications, you’ll need to make adjustments. This critical maintenance task ensures your motorcycle engine runs smoothly and prevents valve damage.
Shim-under-bucket Adjustment Technique
This method is common on modern motorcycles with overhead cam engines. To adjust valves with this system:
- Remove the camshafts after marking their position for proper reinstallation.
- Extract the bucket using a special tool or magnet after removing the camshaft.
- Remove the shim from inside or on top of the bucket depending on your engine design.
- Measure the old shim with a micrometer to determine its thickness.
- Calculate needed thickness based on the measured clearance and manufacturer’s specifications.
Selecting the correct replacement shim thickness is crucial. Most manufacturers provide a chart that helps determine the proper shim size based on current clearance and existing shim.
Screw and Locknut Adjustment Method
This traditional system is simpler to adjust and common on older motorcycles and some newer models:
- Ensure the valve is on the base circle of the camshaft (fully closed position).
- Loosen the locknut with the appropriate wrench while holding the adjuster screw steady.
- Turn the adjuster screw with a flat screwdriver to increase or decrease clearance.
- Re-check clearance with a feeler gauge until it matches specifications.
Always tighten the locknut while holding the adjuster screw in position to prevent it from turning. This maintains your carefully set clearance.
Replacing Shims and Checking Shim Sizes
When replacing shims, organization is key:
Shim Identification Chart:
| Measurement | Common Shim Sizes (mm) |
|---|---|
| Thickness | 1.20, 1.25, 1.30, etc. |
| Diameter | 7.5, 8.0, 9.0, 10.0 |
Keep shims organized by cylinder and valve position. Many mechanics use an ice cube tray or labeled containers to prevent mix-ups.
Always clean shims with brake cleaner before measuring or reinstalling. Dirt can affect both measurement accuracy and valve operation.
Most motorcycle shops have shim kits available if you don’t have the correct size. Alternatively, some shops can grind existing shims to the required thickness if the exact size isn’t available.
Reassembly and Final Checks
After completing valve adjustments, proper reassembly ensures your engine will run correctly and prevent oil leaks. Each step must be performed with precision to maintain the engine’s integrity.
Refitting the Cylinder Head Cover
Begin by cleaning all gasket surfaces thoroughly with a lint-free cloth. Check the valve cover gasket for any damage or compression; replace it if necessary.
Apply a small amount of sealant to any junction points on the gasket where oil leaks commonly occur. Position the gasket carefully in its groove on the cylinder head cover.
Lower the cover gently onto the cylinder head, making sure the gasket stays in place. Insert all bolts by hand first to prevent cross-threading.
Tighten the bolts in a criss-cross pattern, starting from the center and working outward. Use a torque wrench to achieve the manufacturer’s specified torque – typically between 7-12 Nm for most motorcycles.
Double-Checking Valve Clearances
Before finalizing reassembly, it’s wise to check valve clearances one more time. Rotate the engine by hand through at least two complete cycles.
Listen for any unusual clicking or tapping sounds that might indicate incorrect adjustment. The valves should move smoothly without binding or excessive noise.
Verify that all adjustment nuts or screws are properly tightened. A loose adjuster can change clearance during operation, potentially causing valve damage.
If any clearances seem questionable, it’s better to readjust now rather than disassembling the engine later. Small differences in clearance can significantly affect engine performance.
Restarting the Motorcycle Engine
Reconnect any components removed during the process, including spark plugs, ignition coils, and electrical connections. Reinstall the fuel tank and reconnect fuel lines securely.
Before starting, check for any tools or rags left in the engine area. Ensure all bolts are tight and nothing will interfere with engine operation.
Start the motorcycle and let it idle. Listen for unusual noises that might indicate valve issues. The engine should run smoothly without tapping or knocking sounds.
Allow the engine to reach normal operating temperature and check for any oil leaks around the cylinder head cover. A proper valve clearance adjustment should result in improved performance, better fuel economy, and quieter operation.
Tips for Accurate Valve Checks
Performing valve clearance checks requires precision and attention to detail. These practical tips will help you achieve accurate measurements and avoid common pitfalls during the process.
Dealing With Difficult Access
Some motorcycles have valves that are challenging to reach with standard tools. For these situations, use specialized feeler gauge extensions or modified tools to reach tight spaces.
A magnetic pickup tool can be invaluable for retrieving dropped shims or small parts that fall into the engine cavity. Proper lighting is essential – a flexible LED work light positioned correctly will illuminate hard-to-see areas.
Valve clearance inspections are manageable for most owners, but access varies by motorcycle model. On some bikes, you may need to remove the fuel tank or radiator for proper access. Plan ahead by organizing your workspace and keeping parts in labeled containers.
If your motorcycle has a complex valve cover design, take photos before disassembly to reference during reassembly.
Common Mistakes to Avoid
One frequent error is checking valve clearance when the engine is warm. Always perform checks on a cold engine as specified in your service manual, since metal expands when hot and will give inaccurate readings.
Another mistake is improper positioning of the camshaft. The valve being checked must be fully closed with the cam lobe pointing away from the valve bucket or rocker arm. Rotating the engine incorrectly can lead to false measurements.
Using worn feeler gauges can result in inaccurate readings. Invest in quality gauges and keep them clean. The correct gauge should slide between the valve and adjuster with slight resistance – not too tight or too loose.
Common valve checking errors to avoid:
- Using incorrect feeler gauge thickness
- Rushing measurements
- Forgetting to rotate the engine between measurements
- Mixing up intake and exhaust valve specifications
Referencing the Service Manual
The factory service manual contains critical information specific to your motorcycle model. Always consult it for the correct valve clearance specifications, as these vary between intake and exhaust valves.
Your workshop manual will provide the exact procedure for rotating the engine to the proper position for each valve check. Many service manuals include timing marks diagrams that show precisely where the crankshaft should be positioned.
The shop manual also specifies the required tools and the correct sequence for checking valves. Some bikes need special procedures, like removing timing inspection plugs or using specific tools to hold the camshaft.
For adjustment procedures, the factory service manual will indicate whether your motorcycle uses shims, threaded adjusters, or another system. It will also provide torque specifications for any fasteners that need to be removed and reinstalled.
Understanding the Role of Valve Clearance in Motorcycle Performance
Valve clearance directly affects how your motorcycle engine runs, its power output, and its lifespan. Proper clearance ensures valves open and close at exactly the right time during the combustion cycle.
Effects on Engine Power and Efficiency
Valve clearance has a significant impact on your motorcycle’s power delivery and fuel consumption. When clearance is too tight, valves may not fully close, leading to compression loss and power reduction. This incomplete seal allows combustion gases to escape, reducing the pressure that pushes the piston down.
When clearance is too wide, valves open later and close earlier than designed. This reduces valve lift and the amount of air-fuel mixture entering the cylinder, limiting engine power. Wide clearance also creates additional noise as components slam together with greater force.
Optimal valve clearance ensures maximum air-fuel mixture enters the cylinder and all gases are properly expelled. This balance creates the most efficient combustion cycle, delivering better fuel economy and stronger power output throughout the RPM range.
Impact on Longevity of Engine Components
Proper valve clearance significantly extends the life of your engine components. When clearance is too tight, valves can’t dissipate heat properly and may remain partially open during combustion. This can lead to:
- Burnt valve seats
- Warped valves
- Damaged valve stems
- Excessive camshaft wear
When clearance is too loose, components experience increased mechanical shock. The gap between valve stems and cams causes a hammering effect when closing, potentially damaging:
- Valve guides
- Rocker arms
- Cam lobes
- Valve springs
Regular checks and adjustments prevent these expensive repairs. Most manufacturers recommend checking valve clearance according to the service schedule, typically every 15,000-24,000 miles depending on the motorcycle model.
Valve Clearance and Cam Timing
Valve clearance directly affects cam timing in four-stroke engines. The clearance effectively adjusts when valves begin to open and fully close in relation to piston position.
Insufficient clearance causes valves to open earlier and close later than designed. This alters the carefully engineered valve timing, potentially causing valve-to-piston contact in high-performance engines. Such contact can catastrophically damage your engine.
Excessive clearance delays valve opening and advances closing. This shifts the power band and can reduce performance at specific RPM ranges. Sport bikes are particularly sensitive to these timing changes.
Modern motorcycle engines use different systems to adjust clearance: shim-under-bucket, shim-over-bucket, or screw-and-locknut designs. Each system requires specific tools and techniques, but all serve the same purpose of maintaining precise valve operation throughout the combustion cycle.
Frequently Asked Questions
Performing a proper valve clearance check requires specific tools, techniques, and knowledge about your motorcycle model. Below are answers to common questions that arise during this important maintenance task.
What tools are needed to measure the valve clearance on a motorcycle?
To properly check valve clearances, you’ll need several basic tools. A set of feeler gauges is essential for measuring the gap between valve components.
Wrenches, socket sets, and screwdrivers will be required to remove covers and make adjustments. Many motorcycles also require a specific sized wrench for the locknut and adjuster.
A service manual for your specific motorcycle model is highly recommended as it contains the exact specifications and procedures for your engine.
Can you explain the steps involved in checking valve clearance on a Honda motorcycle?
First, ensure the engine is completely cold before beginning any valve clearance check on a Honda. Remove the gas tank and valve covers to access the valve train.
Rotate the crankshaft to position each cylinder at Top Dead Center (TDC) on its compression stroke when checking the corresponding valves. This is when both valves are closed.
Use feeler gauges to check the clearance between the adjuster and valve stem. The gauge should slide between components with slight resistance. If adjustment is needed, loosen the locknut and turn the adjuster screw accordingly.
Is there a difference in valve clearance checking procedure for different motorcycle brands?
Yes, different motorcycle manufacturers use varying valve train designs that require specific procedures. Some bikes use screw-and-locknut adjusters while others employ shim-under-bucket or shim-over-bucket systems.
Harley-Davidson, BMW, and Japanese manufacturers all have their own recommended procedures and tools. The basic principles remain similar, but the access points and adjustment methods differ.
Always consult your motorcycle’s service manual for the exact procedure specific to your make and model.
How often should valve clearance be checked and adjusted for optimal motorcycle performance?
Valve clearance checking intervals vary by manufacturer and model. Sport bikes typically require checks every 15,000 to 20,000 miles, while cruisers and touring bikes may extend to 25,000 miles or more.
High-performance engines generally need more frequent checks due to their higher operating temperatures and RPMs. Valve clearance inspections are considered routine maintenance for four-stroke engines.
Riding conditions also affect this schedule – motorcycles used in extreme conditions or racing should have more frequent valve checks.
What are the common signs that indicate a motorcycle’s valve clearance needs adjustment?
Engine ticking or tapping noises, especially when the engine is warming up, often indicate excessive valve clearance. This noise typically gets louder as RPMs increase.
Poor performance, including reduced power or acceleration, can signal valve clearance issues. Rough idling, misfiring, or difficulty starting may also indicate valves that need adjustment.
If valve clearance becomes too small, valves may leak, causing compression issues. When clearance becomes too large, the valvetrain makes noise and performance suffers.
How do you interpret a motorcycle valve clearance chart during the checking process?
Motorcycle service manuals provide valve clearance specifications listed in precise measurements, typically in millimeters or thousandths of an inch. These charts show the acceptable range for both intake and exhaust valves.
Exhaust valves generally require larger clearances than intake valves because they operate at higher temperatures. The feel of the feeler gauge should be firm but not tight when inserted between components.
Always check your measurements against the manufacturer’s specifications, as running valves too tight or too loose can cause engine damage or performance issues.
