Your motorcycle’s suspension plays a vital role in handling, safety, and comfort. Taking the time to check and adjust your suspension settings can transform your riding experience from bumpy and unpredictable to smooth and controlled. Properly set suspension improves your bike’s stability, cornering ability, and reduces rider fatigue during long rides.
Before making any adjustments, it’s important to inspect your suspension components for damage or wear. Check for oil leaks around the fork seals and rear shock, and ensure all linkage bushings move freely. Even the best adjustments won’t help if your suspension parts are worn out or damaged.
Many riders avoid touching their suspension because it seems complicated, but adjusting motorcycle suspension is easier than most think. The factory settings are based on averages and rarely ideal for individual riders with different weights and riding styles. Taking the time to learn about sag measurements and damping adjustments will result in a motorcycle that feels like it was custom-built for the rider.
Key Takeaways
- Regular suspension checks ensure optimal motorcycle handling, safety, and rider comfort.
- Basic inspection should include examining components for leaks, wear, and proper movement before making adjustments.
- Customizing suspension settings to match rider weight and style delivers significantly better performance than factory defaults.
Understanding Motorcycle Suspension Basics
Motorcycle suspension is a critical system that balances ride comfort and handling performance. It works by absorbing road imperfections while maintaining tire contact with the ground under various riding conditions.
Key Components of Motorcycle Suspension
The front suspension typically consists of telescopic forks containing springs, damping rods, and oil. These forks compress and rebound to absorb impacts while providing steering control.
Most motorcycles use either conventional forks or inverted (upside-down) forks, with the latter offering greater rigidity for performance riding.
The rear suspension usually employs a shock absorber (or two) working with swingarm and linkage systems. This setup manages weight transfer during acceleration and braking.
Modern motorcycles often feature adjustable components allowing riders to customize:
- Preload (spring tension)
- Compression damping (controls how quickly suspension compresses)
- Rebound damping (controls how quickly suspension extends)
How Suspension Impacts Handling and Ride Quality
Properly set suspension dramatically affects handling characteristics by maintaining optimal tire contact with the road. Too soft, and the bike feels unstable during cornering; too stiff, and it loses traction over bumps.
Ride quality depends on finding the right balance. Suspension that’s too firm transmits every road imperfection to the rider, causing fatigue on longer rides.
Weight distribution and suspension settings work together to determine how a motorcycle behaves under acceleration, braking, and cornering.
For sport riders, firmer settings provide better feedback and precision, while touring riders often prefer softer settings for comfort over distance.
Common Suspension Terms and Concepts
Sag refers to how much the suspension compresses under the weight of the motorcycle and rider. It’s typically measured as a percentage of total travel and affects the bike’s geometry and handling.
Damping controls the rate of compression and rebound. Too little damping causes bouncing; too much makes the suspension feel harsh and unresponsive.
Spring rate describes how much force is needed to compress the springs. Heavier riders typically need stiffer springs to maintain proper sag.
Progressive springs have a variable rate, starting soft and becoming firmer as they compress, offering a balance between comfort and bottoming resistance.
Bottoming out occurs when suspension reaches maximum compression, potentially causing damage and loss of control. Proper setup prevents this from happening under normal riding conditions.
Preparing to Check Your Suspension Settings
Before making any adjustments to your motorcycle suspension, you need proper preparation. Getting the right tools, ensuring safety, and correctly positioning your bike are essential steps for accurate suspension checks.
Required Tools and Equipment
To properly check your motorcycle suspension settings, you’ll need several specific tools:
- Tape measure or ruler (preferably metric)
- Marker or chalk
- Notebook and pen for recording measurements
- Suspension pump (for air-sprung suspension)
- C-spanner or specialized tools for your specific motorcycle model
- Pressure gauge
- Clean rags
Some motorcycles require model-specific tools for adjustments. Check your owner’s manual to determine if you need specialized equipment for your bike. Having all tools ready before starting will make the process much more efficient and prevent interruptions during critical measurements.
Safety Considerations Before Adjusting
Safety should always be your priority when working on motorcycle suspension.
Essential safety precautions:
- Ensure the motorcycle is completely cool, especially if you’ve been riding
- Work in a well-lit area with enough space around the bike
- Wear appropriate protective gloves to prevent injuries from sharp components
- Never work under an unsupported motorcycle
Before making any adjustments, check all suspension components for leaks, damage, or worn parts. Examine the fork seals, shock absorber, and all linkage points.
Verify that your motorcycle’s tires are properly inflated, as tire pressure affects how the suspension performs during testing.
Positioning Your Motorcycle for Suspension Checks
Proper motorcycle positioning is crucial for accurate suspension measurements.
The ideal setup includes:
- A flat, level surface (concrete floor is best)
- A motorcycle stand or center stand to stabilize the bike
- Sufficient lighting to see measurement points clearly
For rear suspension checks, the motorcycle should be on its wheels, not on the center stand. This allows natural sag measurements. Some riders use a wall or helper to keep the bike upright during this process.
For front suspension checks, ensure the handlebars are straight and the forks are not binding. Motorcycle steering head bearings should be checked for play before suspension measurements, as loose bearings can affect accuracy.
Position measurement points at eye level when possible to avoid parallax errors that could lead to incorrect readings.

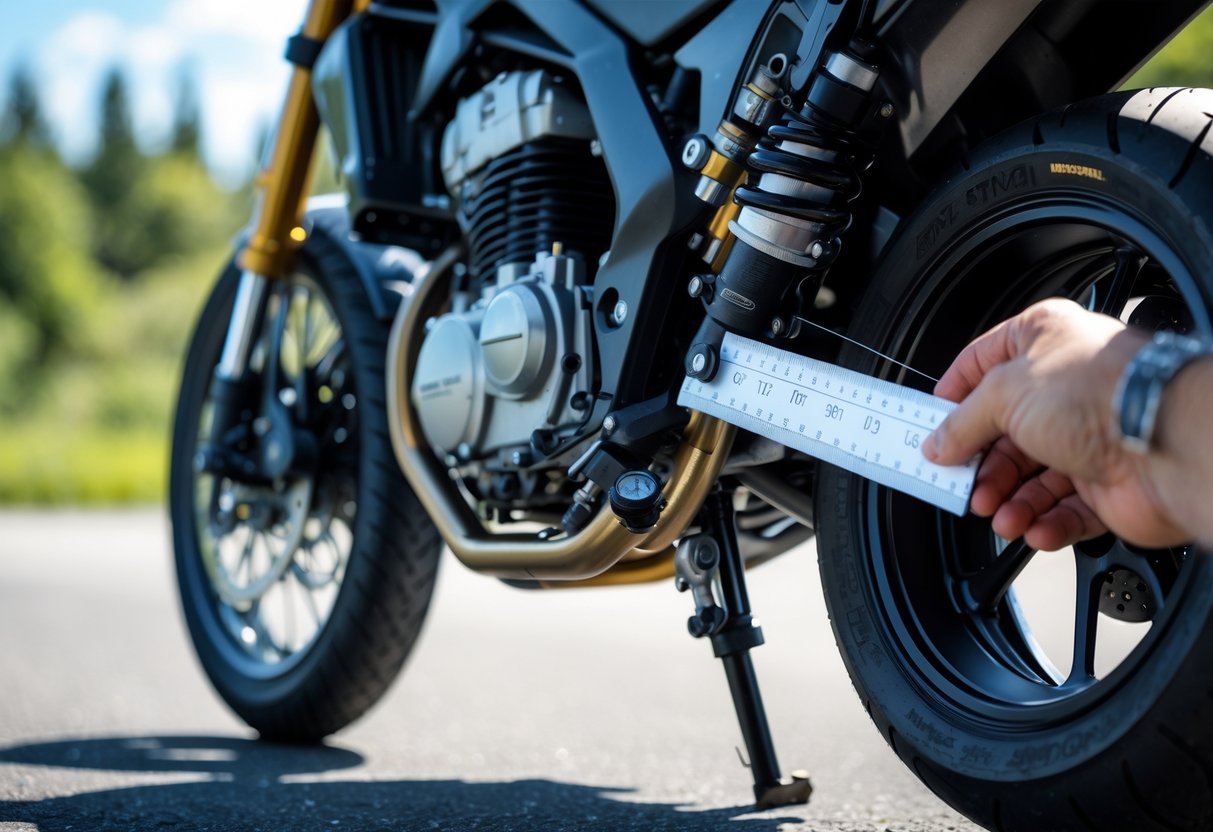

Assessing Rider and Static Sag
Proper suspension setup starts with measuring both rider sag and static sag. These measurements help you determine if your springs have the correct rate for your weight and riding style.

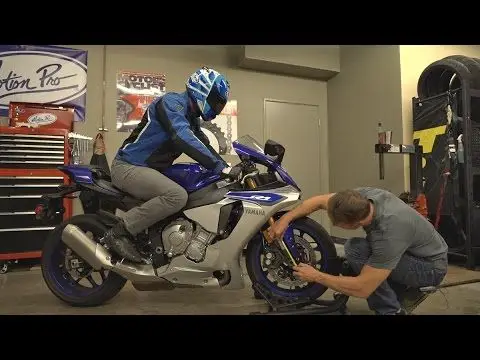

Measuring Rider Sag
Rider sag refers to how much your suspension compresses when you sit on the motorcycle in your normal riding position. This is a crucial measurement that affects how your bike handles.
To measure rider sag correctly:
- Have a helper support the bike while you sit on it in full riding gear
- Bounce up and down a few times to settle the suspension
- Assume your normal riding position with feet on the pegs
- Have your helper measure from the axle center to a fixed point on the motorcycle
For most motocross bikes, the ideal rider sag is around 30-35% of the shock’s total travel. If your rear shock has 300mm of travel, your sag should be between 90-105mm.
To calculate the rear rider sag, subtract the loaded measurement from the fully extended measurement (Example: 478mm – 440mm = 38mm).
Measuring Static Sag
Static sag is how much the suspension compresses under just the weight of the motorcycle without a rider. This measurement helps ensure your suspension isn’t too stiff or too soft.
To measure static sag:
- Place the bike on a stand with the wheels off the ground
- Measure from the rear axle to a fixed point and record this (Dimension A)
- Lower the bike onto the ground
- Push down on the seat gently and let it rise to its resting position
- Measure the same points again (Dimension B)
The static sag is the difference between these measurements (A – B). Typical static sag values range from 5-10mm for the front and 5-15mm for the rear suspension.
Adjusting preload on your springs affects both rider and static sag, which ultimately determines your bike’s ride height. Always check your service manual for recommended settings.

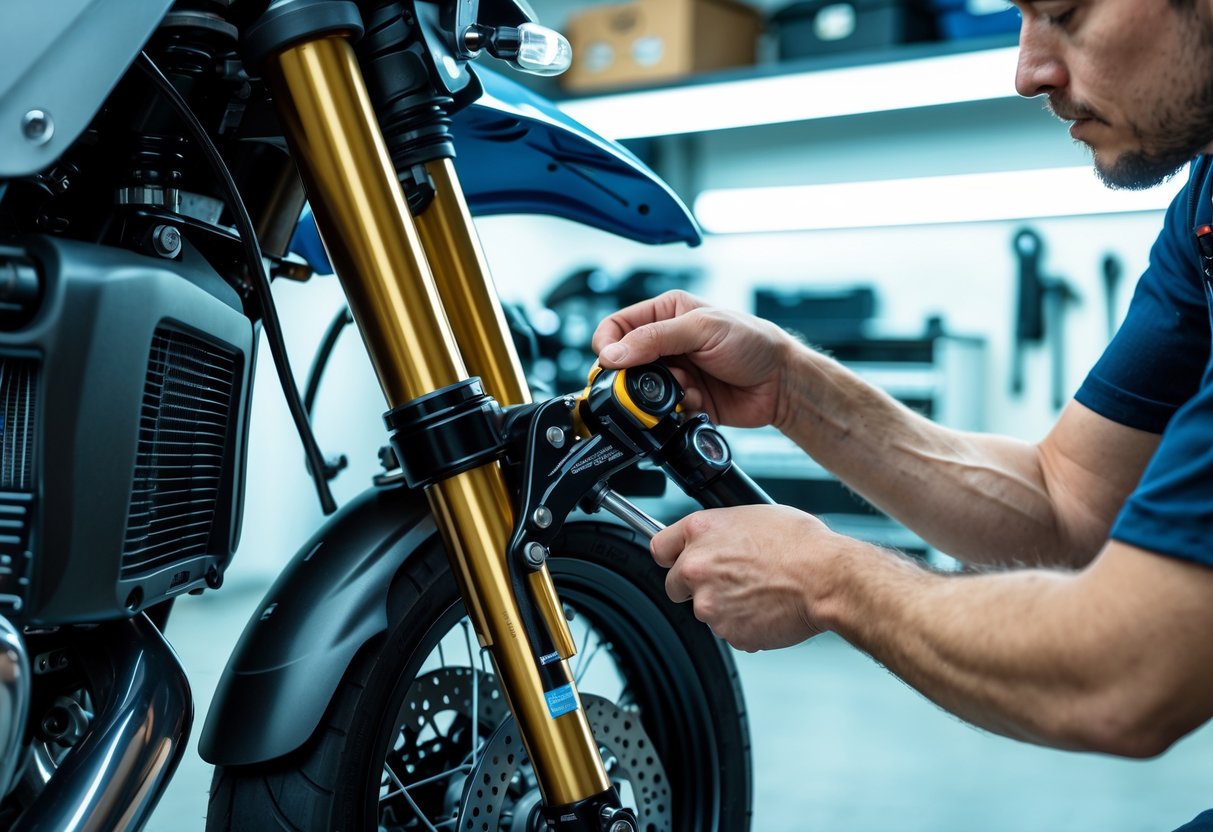

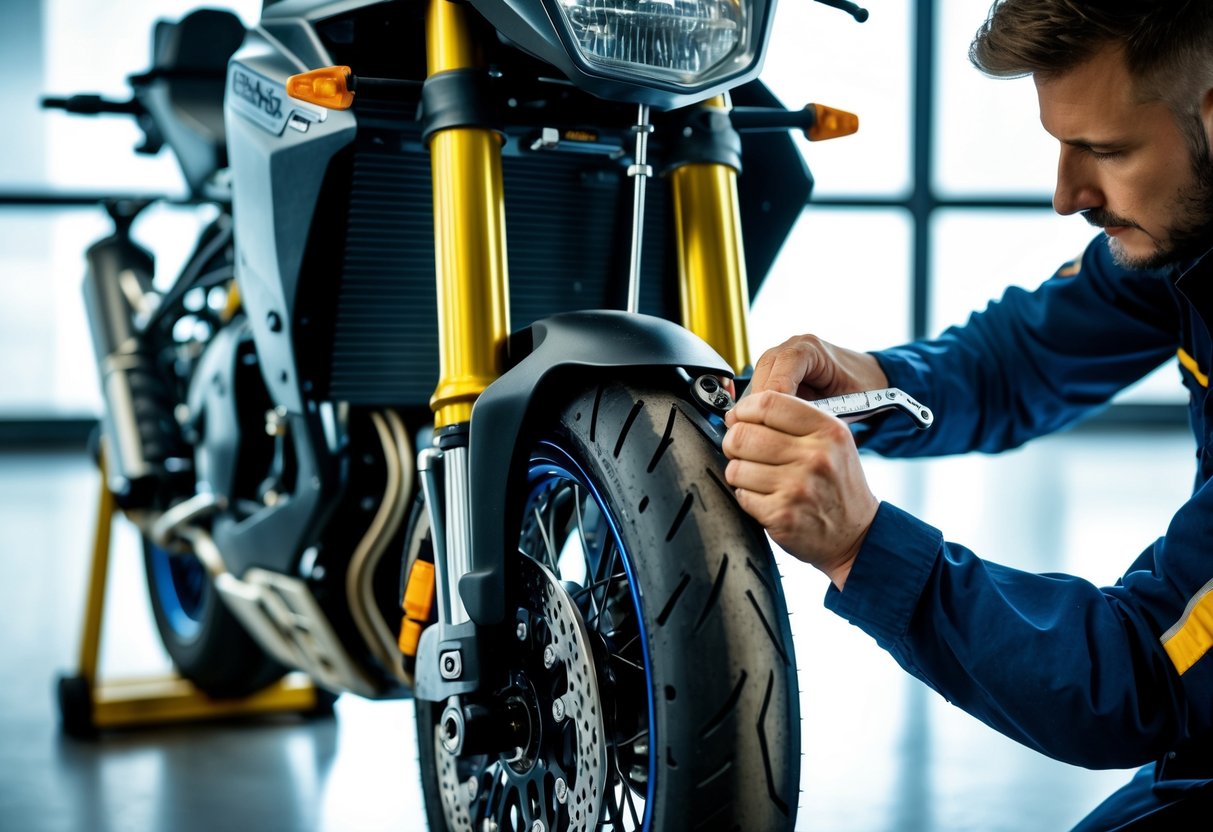

Evaluating Front Suspension Settings
Proper front suspension setup directly impacts your motorcycle’s handling, stability, and comfort. These adjustments ensure optimal performance for your weight, riding style, and road conditions.
Checking Front Preload Adjustment
Front preload determines how much your fork compresses under static load. To check this setting, you’ll need a tape measure and possibly a helper.
First, measure the exposed area of your front forks when the bike is on its stand with no weight on it. This is your fully extended measurement.
Next, sit on the bike in your normal riding position (with gear on) and have someone measure the same spot. The difference between these measurements is your sag.
Proper sag typically ranges from 25-30% of total travel. Check your specific motorcycle manual for recommended values.
To adjust preload, locate the preload adjusters at the top of your front forks. Most bikes use either a flat screwdriver slot or require a special C-spanner tool for adjustment.
Assessing Front Rebound Damping
Rebound damping controls how quickly your front forks return to position after compression. Incorrect settings can cause instability or poor handling.
A simple test: push down firmly on the handlebars and release. The front end should return smoothly without bouncing or moving too slowly. One clean compression-extension cycle is ideal.
Most motorcycles have rebound adjustment screws at the top of the fork tubes. They’re typically marked with an “R” or color-coded (often red).
Turn the adjuster clockwise to increase damping (slower rebound) or counterclockwise to decrease it (faster rebound). Make small adjustments—usually ¼ turn at a time.
For a more thorough test, ride over a speed bump at moderate speed. The front end should compress and return to position without excessive bouncing or wallowing.
Inspecting Rear Suspension Adjustments
Your motorcycle’s rear suspension plays a vital role in handling, comfort, and overall performance. Regular inspection ensures optimal settings for your riding style and road conditions.
Reviewing Rear Preload Settings
Rear preload affects your motorcycle’s ride height and weight distribution. To check your rear suspension preload, first measure the sag when the bike is unloaded.
Stand the motorcycle on its center stand so the rear wheel is off the ground. Measure the distance from the axle to a fixed point on the frame directly above it. This is your unloaded measurement.
Next, sit on the bike in your normal riding position with all gear. Have someone measure the same points. The difference between these measurements is your rider sag.
Proper sag typically ranges between 25-35mm, depending on your motorcycle model. If sag is too much, increase preload by turning the adjustment collar clockwise. If too little, decrease preload by turning counterclockwise.
Testing Rear Shock Compression Damping
Compression damping controls how quickly your rear shock compresses when hitting bumps. To test it, find the compression adjustment knob usually located at the top of the shock reservoir.
Note the current setting by counting clicks from fully closed (clockwise) to your current position. This allows returning to original settings if needed.
Perform a bounce test by firmly pushing down on the rear seat and observing how the suspension rebounds. It should compress smoothly and return without excessive bouncing.
For a more thorough test, ride at moderate speed over small bumps. The rear should absorb impacts without feeling harsh or bottoming out. If the ride feels too stiff, reduce compression damping. If it bottoms out easily, increase it.
Most motorcycles use a simple screwdriver or allen wrench for these adjustments. Always make small, incremental changes (1-2 clicks) and test ride between adjustments.
Fine-Tuning Dampers and Other Suspension Settings
Dampers control how your motorcycle suspension compresses and rebounds, which directly affects handling and comfort. Getting these settings right can transform your riding experience from jarring to smooth and controlled.
Setting Rebound Damping for Optimal Response
Rebound damping controls how quickly your suspension extends after being compressed. Too fast, and your bike will feel bouncy; too slow, and it might pack down over bumps.
To adjust rebound damping, locate the adjuster (usually at the top of the fork or on the shock) marked with “+” and “-” symbols. The “+” symbol indicates stiffer settings, while “-” means softer damping.
A good starting point is to set the damper to the middle position. Then test ride over varied terrain. If the bike feels like it’s bouncing after bumps, increase rebound damping. If the suspension feels sluggish or doesn’t recover quickly enough between bumps, decrease the rebound damping.
Quick test: Push down hard on the front or rear of the bike and release. The suspension should return to position in a smooth, controlled motion without bouncing.
Dialing in Compression Damping
Compression damping controls how the suspension responds when hitting bumps. It’s often divided into low-speed and high-speed compression adjustments on higher-end motorcycles.
Low-speed compression affects weight transfer during braking and acceleration, while high-speed compression handles sharp impacts like potholes or curbs.
To adjust compression damping, find the adjuster (often a screw or dial) on the fork or shock. Start with the manufacturer’s recommended settings or midpoint.
If the suspension feels harsh over small bumps, reduce compression damping. If the bike dives too much under braking or feels wallowy in corners, increase compression damping.
Remember: Always make small adjustments (1-2 clicks) at a time and test after each change. Keep track of your changes so you can always return to your base settings if needed.
Troubleshooting Common Suspension Issues
Motorcycle suspension problems can impact both comfort and safety while riding. Recognizing and fixing these issues helps maintain control and extends the life of your suspension components.
Identifying Signs of Too Much Compression
Too much compression makes your suspension feel stiff and unresponsive. You’ll notice your bike doesn’t absorb bumps well and tends to deflect off obstacles rather than absorbing them.
Key indicators include:
- Feeling every small bump in the road
- Front end deflecting off bumps rather than absorbing them
- Difficulty maintaining traction on rough surfaces
- Harsh ride quality when hitting consecutive bumps
To correct this issue, try decreasing compression damping by turning the adjustment screws counterclockwise in small increments (usually 1-2 clicks at a time). Test after each adjustment until the ride feels more compliant.
For motorcycles without adjustable compression, a suspension specialist may need to modify internal valving or recommend springs that better match your weight.
Dealing With Bottoming Out
Bottoming out occurs when the suspension compresses fully during impacts, causing a harsh metal-to-metal contact. This not only feels uncomfortable but can damage your suspension components.
Signs your suspension is bottoming out include:
- Loud clunking sounds when hitting bumps
- Feeling a hard stop at the end of suspension travel
- Handlebars jolting severely over larger bumps
- Reduced ground clearance
To fix bottoming out problems:
- Increase preload adjustment
- Increase compression damping (1-2 clicks at a time)
- Check for worn out springs that may need replacement
- Consider heavier weight fork oil
For heavier riders, upgrading to stiffer springs matched to your weight may be necessary.
Solving Instability and Harsh Ride
Instability and a harsh ride often stem from improper suspension balance or settings. These issues compromise handling and rider comfort.
Common symptoms include:
- Front end diving excessively under braking
- Wobbling or head shake at certain speeds
- Difficulty maintaining a line through corners
- Lack of rebound causing the bike to feel bouncy
Start by ensuring both front and rear suspension have proper sag settings (typically 25-30% of total travel). Check that rebound settings aren’t too slow, which can cause packing down over bumps.
For excessive harshness, try reducing compression damping slightly and ensuring rebound isn’t set too fast. Balance is key—adjustments to front suspension often require complementary changes to the rear for optimal handling.
Advanced Suspension Adjustments and Upgrades
Taking your motorcycle suspension to the next level involves specialized modifications that can dramatically improve handling and ride quality. These changes allow riders to customize how their bike responds to different road conditions and riding styles.
Aftermarket Springs and Their Advantages
Aftermarket springs offer significant performance gains over stock components. They’re typically made from higher-quality materials and provide more consistent behavior under stress. Most aftermarket springs are designed with specific rider weights and riding styles in mind.
Advanced tuning often includes replacing the stock springs with options that better match your weight and riding style. Benefits include:
- Improved stability at high speeds
- Better cornering capabilities
- Reduced bottoming out on rough terrain
- Longer component life due to proper loading
Riders should consider their weight, typical cargo, and whether they frequently carry passengers when selecting springs. The right spring rate ensures the suspension maintains the proper sag under load without being too stiff.
Customizing Spring Rates and Suspension Travel
Spring rate, measured in kg/mm or lb/in, indicates how much force is needed to compress a spring by a specific distance. Higher rates provide firmer rides suitable for aggressive riding or heavier riders, while lower rates offer more comfort.
Suspension travel adjustments can transform how a motorcycle handles various terrain. Changing the amount of travel affects:
- Ground clearance
- Handling characteristics
- Rider comfort
- Stability during acceleration and braking
Professional mechanics can modify internal components through a process called revalving. This technique changes the damping characteristics by rearranging or adding shims inside forks or shocks.
For riders seeking maximum customization, adjustable triple clamps allow fine-tuning of the front suspension geometry. This changes the bike’s rake and trail, significantly affecting steering response and front-end feel.
Frequently Asked Questions
Proper motorcycle suspension setup significantly impacts ride quality, handling, and safety. These common questions address key adjustment techniques, measurement methods, and maintenance intervals.
What steps should be followed to adjust the motorcycle suspension to accommodate rider weight?
Start by checking the manufacturer’s recommended settings for your weight range. Most motorcycles come with a manual that includes baseline suspension settings.
For heavier riders, increase the preload on both front and rear suspension. This prevents the suspension from compressing too much under load.
Lighter riders should reduce preload to allow proper suspension movement. After adjusting preload, test ride the motorcycle and make small, incremental adjustments until the ride feels balanced.
How can you accurately measure and set the sag on a motorcycle’s suspension?
To measure sag correctly, you’ll need a measuring tape or specialized sag tool and an assistant. Place the motorcycle on a stand to measure the fully extended suspension height.
Next, remove the stand and have an assistant balance the motorcycle while you sit in riding position with full gear. Measure the compressed suspension height at the same point.
The difference between these measurements is your rider sag. Most sport motorcycles perform best with 30-35mm of front sag and 25-30mm of rear sag, but always check manufacturer recommendations.
What are the common indicators that your motorcycle’s suspension may need adjustment?
Excessive diving during braking indicates soft front suspension. The motorcycle may also feel unstable or wobble at higher speeds.
A harsh, uncomfortable ride suggests overly stiff suspension. Poor handling in corners or the motorcycle feeling unbalanced between front and rear are also key indicators.
Bottoming out on bumps or uneven tire wear patterns often signal incorrect suspension settings. If the motorcycle feels different from when it was new or after professional setup, adjustments are likely needed.
What tools are necessary for making suspension adjustments on a motorcycle?
Basic suspension adjustments require C-spanner wrenches specifically sized for your motorcycle’s preload collars. Some motorcycles use a dedicated preload adjuster tool.
For more precise adjustments, a suspension pump for air forks, specialized sag measurement tools, and suspension setting analyzers may be necessary.
Keep a notebook to record settings and changes. Many riders also use a digital tire pressure gauge, as correct tire pressure complements proper suspension performance.
How often should you check and adjust your motorcycle’s suspension settings?
Check suspension settings every 2,000-3,000 miles during regular maintenance. Seasonal changes in temperature can affect suspension performance, requiring minor adjustments.
After any significant weight change (adding luggage, passenger, or changes in rider weight), the suspension should be rechecked. New tires may also necessitate slight suspension adjustments.
Perform a thorough suspension inspection annually, checking for leaking seals, unusual noises, or inconsistent damping performance.
What is the process for fine-tuning a motorcycle’s rear suspension sag?
Begin by measuring the static sag (motorcycle’s weight only) and rider sag (with rider in full gear). The static sag should typically be 5-10mm, while rider sag targets vary by motorcycle type.
To adjust, locate the preload adjuster on the rear shock. Increasing preload reduces sag, while decreasing preload increases sag.
Make small adjustments (1/4 to 1/2 turn), then remeasure. Continue this process until optimal sag is achieved. Finally, test ride and make additional fine adjustments based on feel and handling.
