Testing your car battery’s voltage is a simple task that can save you from being stranded with a dead battery. With just a multimeter and a few minutes of your time, you can determine if your battery is healthy or needs replacement. The normal voltage for a car battery should be between 12.5 and 12.7 volts when the engine is off, and between 13.8 and 14.5 volts when the engine is running.
Many car problems that seem complex—like difficulty starting, dim headlights, or electrical issues—can actually be traced back to a weak battery. Testing your car battery with a multimeter is easier than most people think and requires no special mechanical skills. By regularly checking your battery’s voltage, drivers can catch problems early before they lead to a complete breakdown.
Key Takeaways
- A healthy car battery should read 12.6 volts when resting and 13.8-14.5 volts when the engine is running.
- Regular voltage testing with a digital multimeter can help detect battery issues before they cause vehicle failure.
- Battery testing should be performed with the ignition off and all electrical components turned off for accurate readings.
Understanding Car Battery Voltage
Car battery voltage is a key indicator of your battery’s health and ability to function properly. Knowing how to interpret voltage readings can help diagnose problems and prevent unexpected breakdowns.
What Voltage Indicates a Fully Charged Battery
A fully charged car battery should read between 12.6 to 12.7 volts when the engine is off. This represents 100% charge capacity for a standard 12-volt automotive battery.
When the engine is running, the alternator charges the battery, and the voltage should increase to between 13.8 and 14.5 volts. Readings consistently below 13.5 volts while the engine runs may indicate a charging system problem.
Temperature can affect voltage readings. Cold temperatures temporarily reduce voltage output, while hot temperatures can slightly increase readings. For accurate assessment, drivers should test their battery after it has been at rest for at least an hour.
Battery Voltage and State of Charge
Voltage readings directly correlate to a battery’s state of charge. Here’s a breakdown:
| Voltage Reading | State of Charge |
|---|---|
| 12.6V – 12.7V | 100% |
| 12.4V | 75% |
| 12.2V | 50% |
| 12.0V | 25% |
| 11.9V or less | Discharged |
When a battery’s voltage falls below 12.4V, it’s already lost a quarter of its charge. Most vehicles will still start with a battery at 75% charge, but performance may be affected.
A battery consistently reading below 12.0 volts when rested indicates significant discharge. At this level, starting problems become likely, especially in cold weather.
Effects of Voltage Drop
Voltage drop occurs when the battery is under load, such as when starting the engine. A healthy battery should not drop below 9.5-10 volts during cranking.
To test for voltage drop, one should use a multimeter while cranking the engine. If voltage plummets below 9.5 volts, the battery is likely failing or unable to hold sufficient charge.
Excessive voltage drop causes noticeable symptoms. Dim headlights, slow cranking, and illuminated warning lights are common indicators. Electronic systems may also behave erratically when voltage is unstable.
Consistent voltage drop under normal conditions often signals that battery replacement will soon be necessary. Most car batteries last 3-5 years, depending on usage conditions and maintenance.

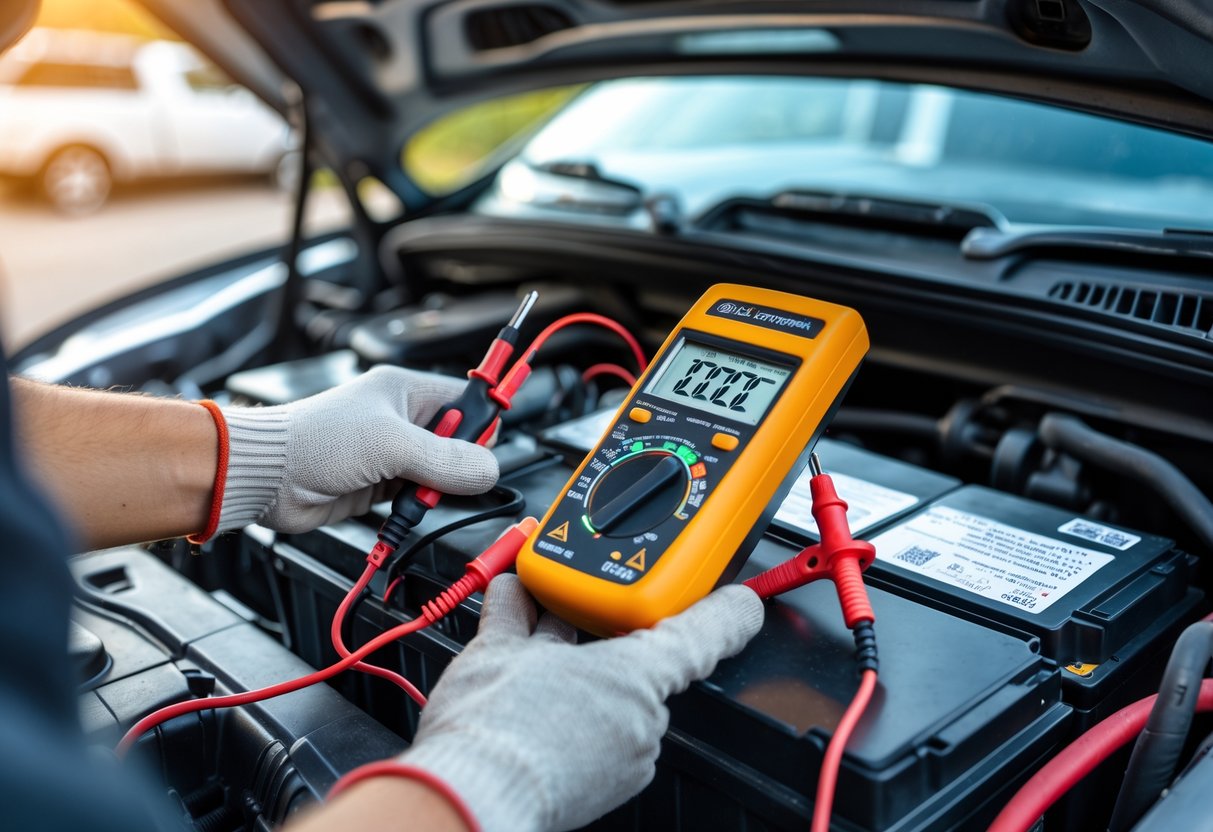

Essential Tools for Battery Voltage Testing
Testing your car battery’s voltage requires specific tools that provide accurate readings. The right equipment helps diagnose battery issues before they leave you stranded.
Choosing the Right Voltmeter or Multimeter
A digital multimeter is the most versatile tool for battery testing. Look for one with DC voltage measurement capability that can read at least 20 volts. Quality multimeters display readings with one or two decimal places for precision.
When selecting a multimeter, consider these features:
- Auto-ranging capability – automatically selects the appropriate measurement range
- Backlit display – helps when working in dimly lit areas
- Durable test leads – with insulated probes for safety
- Overload protection – prevents damage from voltage spikes
Most multimeters used for battery testing cost between $15-$50. Professional-grade models offer greater accuracy and durability but aren’t necessary for occasional use.
The probes should have sharp tips to make good contact with battery terminals. Red connects to positive, black to negative.
Using a Dedicated Battery Tester
Dedicated battery testers provide more specialized analysis than multimeters. These devices are designed specifically for automotive batteries and offer simplified operation.
Basic testers show voltage readings, while advanced models evaluate:
- Overall battery condition
- Cold cranking amps (CCA) capability
- Internal resistance
- Starting system performance
Many dedicated battery testers include built-in load testing. They apply a temporary load to the battery while measuring voltage drop, providing a more accurate assessment of battery health.
Some modern battery testers connect to smartphones via Bluetooth. This allows for detailed reporting and tracking battery performance over time.
These testers typically cost $30-$100 for consumer models. They often include color-coded indicators that make results easy to interpret.
Selecting a Load Tester
Load testers provide the most thorough battery evaluation by simulating actual starting conditions. They draw significant current from the battery while monitoring voltage response.
A good load tester should:
- Handle appropriate current levels – typically 125-500 amps for passenger vehicles
- Include a built-in timer – for consistent test duration
- Feature an easy-to-read gauge – showing voltage under load
- Have heavy-duty clamps – for secure connection to battery terminals
Carbon pile load testers are considered the industry standard. They use a stack of carbon discs to create resistance and draw current from the battery.
Professional mechanics often use load testers to identify weak batteries that might pass a simple voltage test but fail under actual starting conditions. Load testers typically cost $50-$200 for consumer models.
Electronic load testers provide more precise and safer operation than traditional carbon pile units but come at a higher price point.

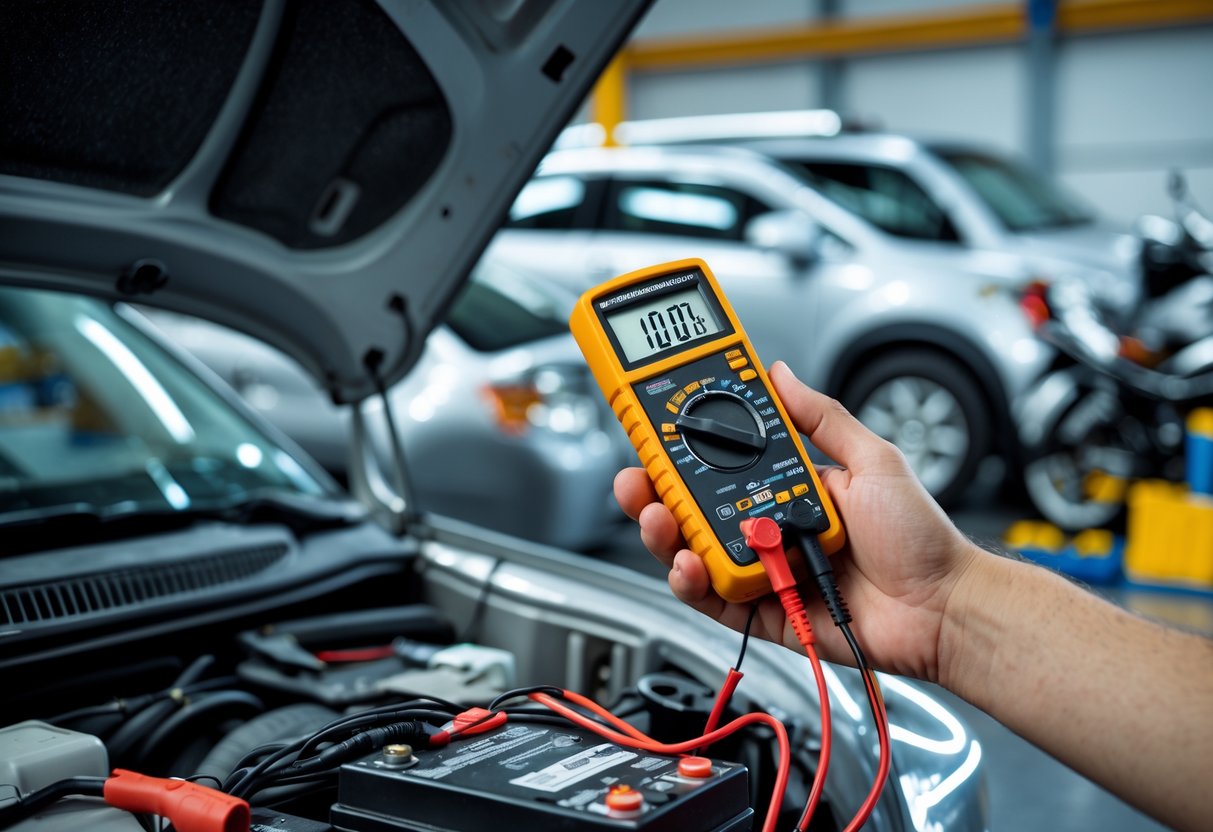

Step-By-Step Guide to Testing Your Car’s Battery Voltage
Testing your car’s battery voltage is a simple task that can help you identify potential issues before they leave you stranded. With a digital multimeter and basic knowledge, you can quickly determine if your battery is healthy or needs replacement.
Preparing the Car and Battery for Testing
Turn off your car’s engine and all electrical components before testing. This ensures you get an accurate reading of the battery’s resting voltage. Make sure the battery terminals are visible and accessible.
If you notice corrosion on the battery terminals (usually appearing as a white or greenish powder), clean them before testing. Use a wire brush or battery terminal cleaner to remove buildup. Wear protective gloves as battery corrosion is caustic.
Set your digital multimeter to DC voltage. Most car batteries are 12-volt systems, so select the 20V setting on your multimeter to accurately capture the reading. This setting allows for measurements between 0-20 volts, which is perfect for automotive batteries.
Make sure your multimeter’s probes are in working condition. The red probe connects to the positive terminal, while the black probe connects to the negative terminal.

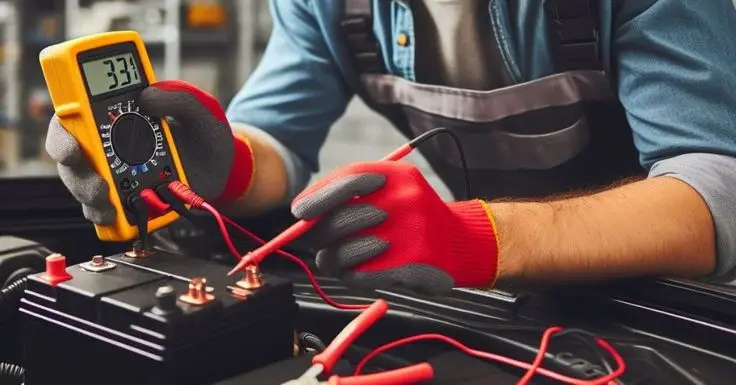

Measuring Voltage at the Battery Terminals
Locate the positive (marked with a “+” or colored red) and negative (marked with a “-” or colored black) battery terminals. Carefully connect the red probe to the positive terminal first, then connect the black probe to the negative terminal.
Hold the probes firmly against the terminals, ensuring good contact. Avoid touching the metal parts of the probes to prevent electrical shock or false readings.
Check the voltage reading on your multimeter’s display. The number should stabilize after a few seconds. Record this number as your battery’s resting voltage.
For a more thorough assessment, you can also test the battery under load. Start the engine while the multimeter is still connected and observe any voltage changes. A healthy battery will maintain a steady voltage while the engine runs.
Interpreting the Voltage Reading
A fully charged car battery should read between 12.4 and 12.7 volts when the engine is off. This range indicates a healthy battery with a full charge. If the reading falls below 12.4 volts, your battery is partially discharged.
Readings below 12.0 volts indicate a significantly discharged battery that needs recharging. If your battery shows less than 11.5 volts, it is severely discharged and may need replacement soon.
After starting the engine, the battery voltage should rise to between 13.7 and 14.7 volts. This higher reading shows that the alternator is properly charging the battery. If the voltage doesn’t increase when the engine starts, your alternator might have issues.
Temperature affects battery performance. Cold weather reduces battery capacity, while extreme heat can damage internal components. Consider these factors when interpreting your results.
If your battery consistently shows low voltage despite recharging, it may be nearing the end of its lifespan (typically 3-5 years).

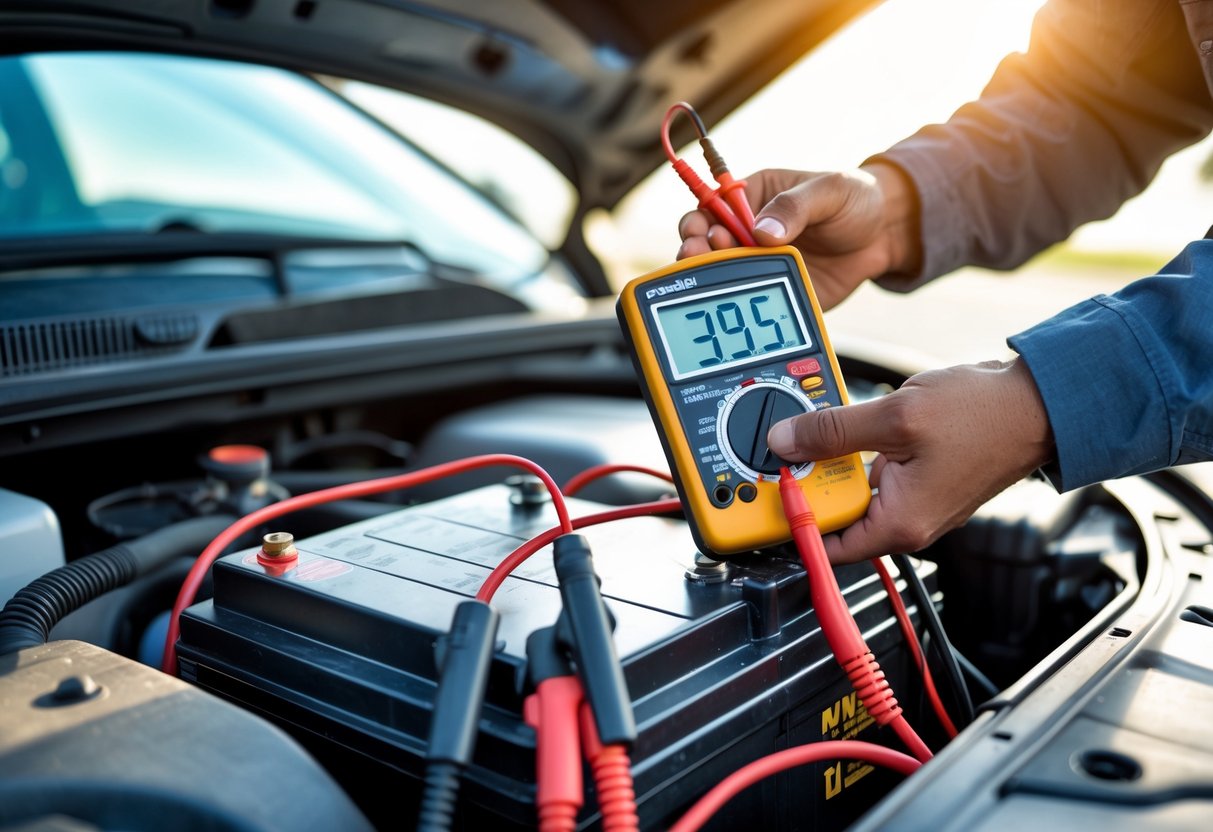

Load Testing and Its Importance
Load testing is a critical method to evaluate your car battery’s health and performance under real-world conditions. This test measures how well your battery can deliver power when it needs to start your car.
How to Perform a Load Test
To conduct a proper load test, you’ll need a specialized battery load tester that can apply a controlled electrical load. Start by ensuring the battery is fully charged before testing.
Connect the load tester’s clamps to the battery terminals – red to positive and black to negative. Make sure the connections are secure for accurate readings.
Set the load tester to apply a load equal to half the battery’s cold cranking amps (CCA) rating for 15 seconds. This mimics the power demand when starting your engine.
Some multimeters have a MIN/MAX function that can be used for a simple load test. While this isn’t as thorough as a dedicated load tester, it can provide useful information in a pinch.
For safety, wear protective gloves and eyewear when handling battery equipment, as batteries contain corrosive materials.
Understanding Load Testing Results
A healthy battery will maintain voltage above 9.6 volts during a 15-second load test. If voltage drops below this threshold, the battery is likely failing and needs replacement.
The difference between a regular battery test and a load test is significant. While a voltage test shows current charge status, load testing reveals the battery’s actual power delivery capability.
Watch for these warning signs during testing:
- Rapid voltage drop: Indicates internal resistance issues
- Excessive heat: May signal a short circuit
- Visible corrosion: Can interfere with connections and readings
Professional auto shops often use computerized load testers that provide detailed reports about battery health. These advanced tools evaluate internal resistance and can predict remaining battery life.
Remember that temperature affects test results – batteries perform differently in hot versus cold conditions.

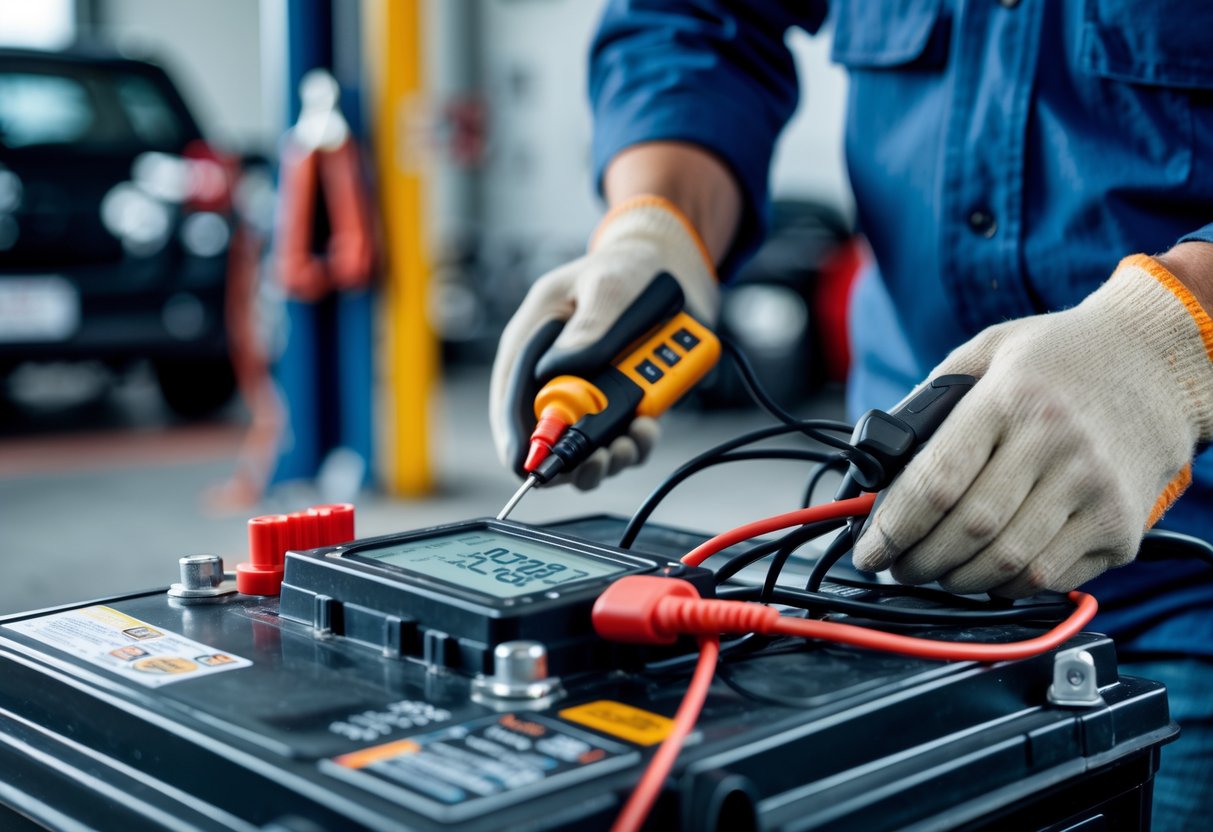

Maintaining Battery Health and Longevity
Regular maintenance extends your car battery’s lifespan and prevents unexpected failures. Proper care includes cleaning terminals, checking fluid levels, watching for electrical issues, and following good usage habits.
Checking and Cleaning Battery Terminals
Battery terminals often collect corrosion that appears as a white, blue, or greenish powder. This buildup increases electrical resistance and can prevent your car from starting properly.
To clean terminals:
- Disconnect the battery (negative terminal first)
- Mix a solution of baking soda and water
- Use a wire brush to scrub away corrosion
- Rinse with clean water and dry thoroughly
- Apply a thin coat of petroleum jelly or terminal protectant
Check terminals monthly for signs of corrosion. Loose connections can also cause problems, so make sure clamps are secure but not overtightened. A multimeter can test the connection quality by measuring voltage drop across terminals.
Refilling with Distilled Water
Many car batteries (except maintenance-free types) require occasional water refilling to replace what’s lost during normal operation.
Only use distilled water when refilling battery cells. Tap water contains minerals that damage battery plates and reduce efficiency.
The proper procedure includes:
- Checking levels monthly in hot weather
- Adding water only when battery is fully charged
- Filling to just below the fill line (don’t overfill)
- Never letting plates become exposed
Low water levels expose battery plates to air, causing permanent damage. Modern batteries might have indicators that change color when water is needed. Never add battery acid unless specifically instructed by a professional.
Identifying Signs of Short Circuit
Short circuits drain battery power rapidly and can damage other electrical components. Testing battery health regularly helps identify these problems early.
Common signs of a short circuit include:
- Rapid discharge even when not in use
- Bulging battery case from excessive heat
- Burning smell around the battery
- Extremely hot battery during normal operation
- Dimming lights when accessories are used
A healthy battery should maintain about 12.6 volts when the engine is off. If voltage drops significantly overnight with nothing running, suspect a short circuit or parasitic drain.
Use a multimeter to test for unusual current draw when the car is off. Readings above 50 milliamps may indicate a problem.
Extending Car Battery Life
Proper usage habits significantly impact battery longevity. Most car batteries last 3-5 years, but with good maintenance, many can exceed this range.
Key practices for extending battery life:
- Drive regularly for at least 20 minutes to maintain charge
- Avoid leaving lights or accessories on when the engine is off
- Park in temperature-controlled areas when possible
- Secure the battery firmly to prevent vibration damage
- Keep headlights off when starting the engine to reduce load
Consider using a battery tender during long periods of non-use. These devices maintain optimal charge without overcharging, which can damage battery cells.
Extreme temperatures are particularly hard on batteries. Heat accelerates internal corrosion, while cold weather reduces chemical reaction efficiency. A battery insulation kit can help in severe climates.

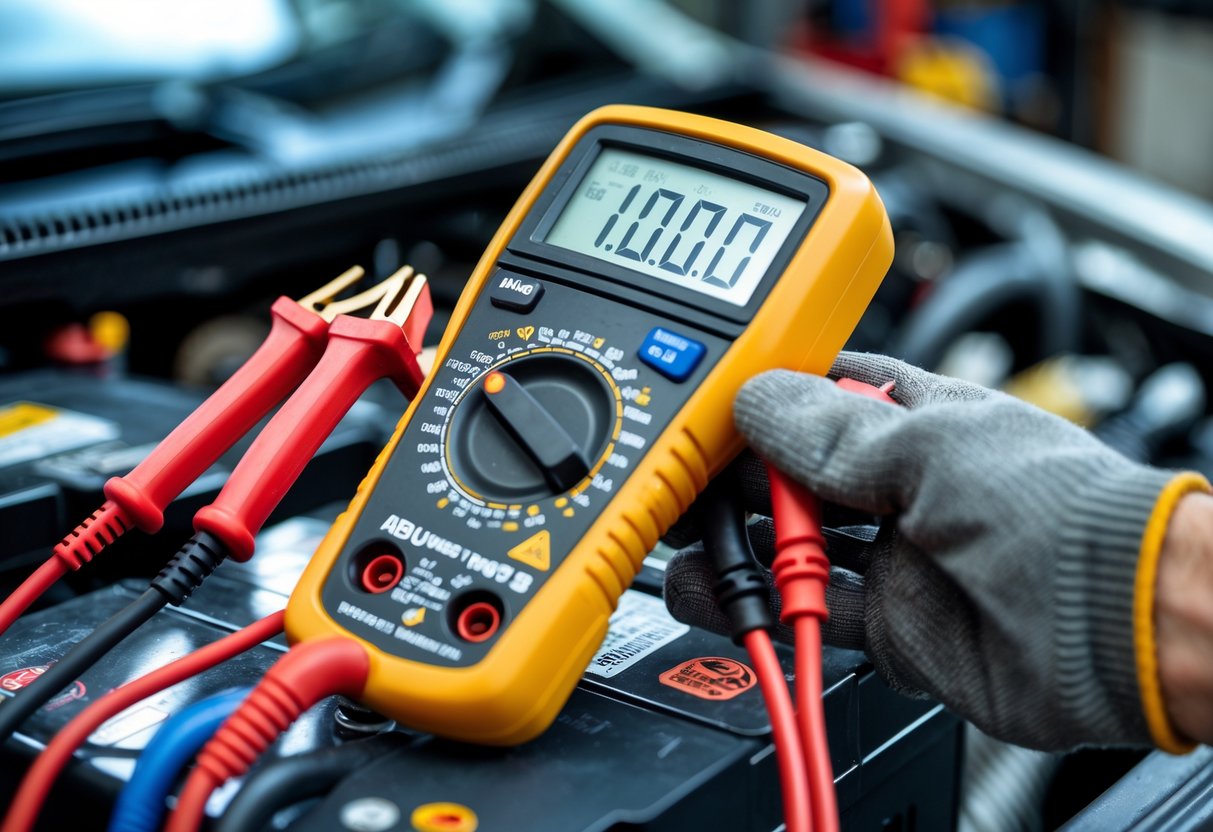

Troubleshooting Common Battery Voltage Issues
Battery voltage problems can indicate various issues with your vehicle’s electrical system. Knowing how to interpret these readings will help you maintain your car and prevent unexpected breakdowns.
Dealing with Low Voltage Readings
When your multimeter shows less than 12.4 volts on a resting battery, this indicates a potential problem. A healthy car battery should read between 12.4-12.7 volts when the engine is off.
Common causes of low voltage:
- Parasitic drain from lights or electronics left on
- Faulty alternator not charging properly
- Old battery with reduced capacity
- Corroded battery terminals
To address low voltage issues, first check for visible corrosion on terminals and clean them if necessary. A battery with clean connections should be charged using a proper battery charger.
If the battery won’t hold a charge after recharging, it likely needs replacement. For batteries that drain quickly, a parasitic draw test can help identify electrical components drawing power when the vehicle is off.
Testing During Different Operating Conditions
Battery voltage fluctuates based on vehicle operating conditions, providing valuable diagnostic information about the entire charging system.
Key voltage testing scenarios:
- Engine off: 12.4-12.7V (healthy battery)
- During starting: Temporarily drops to 9.5-10.5V
- Engine running: 13.7-14.7V (shows alternator function)
While starting the car, voltage will naturally drop as the starter motor draws significant current. If voltage falls below 9.5V during starting, the battery may lack sufficient cranking power.
With the engine running, voltage should increase to 13.7-14.7V, indicating the alternator is charging the battery. Readings below 13.5V suggest an alternator problem. Readings above 14.7V could indicate voltage regulator issues, potentially damaging the battery through overcharging.
Temperature affects battery performance significantly. Cold weather reduces capacity, while extreme heat accelerates deterioration.
When to Replace a Car Battery
Most car batteries last 3-5 years, but several indicators suggest when replacement is necessary before complete failure occurs.
Signs a battery needs replacement:
- Voltage consistently below 12.4V after full charging
- Unable to hold charge overnight
- Physical damage (bulging case, leakage)
- Slow engine cranking
- Age over 4 years with performance issues
Testing the battery under load provides the most accurate assessment of its condition. If voltage drops below 9.5V during cranking and doesn’t recover quickly, replacement is likely needed.
Battery date codes (often stamped on the case) help determine age. Most use a letter-number format where the letter indicates month (A=January) and the number indicates year.
When purchasing a replacement, match the group size, terminal configuration, and cold cranking amps (CCA) rating to your vehicle’s specifications. Higher CCA ratings offer better cold-weather starting performance.

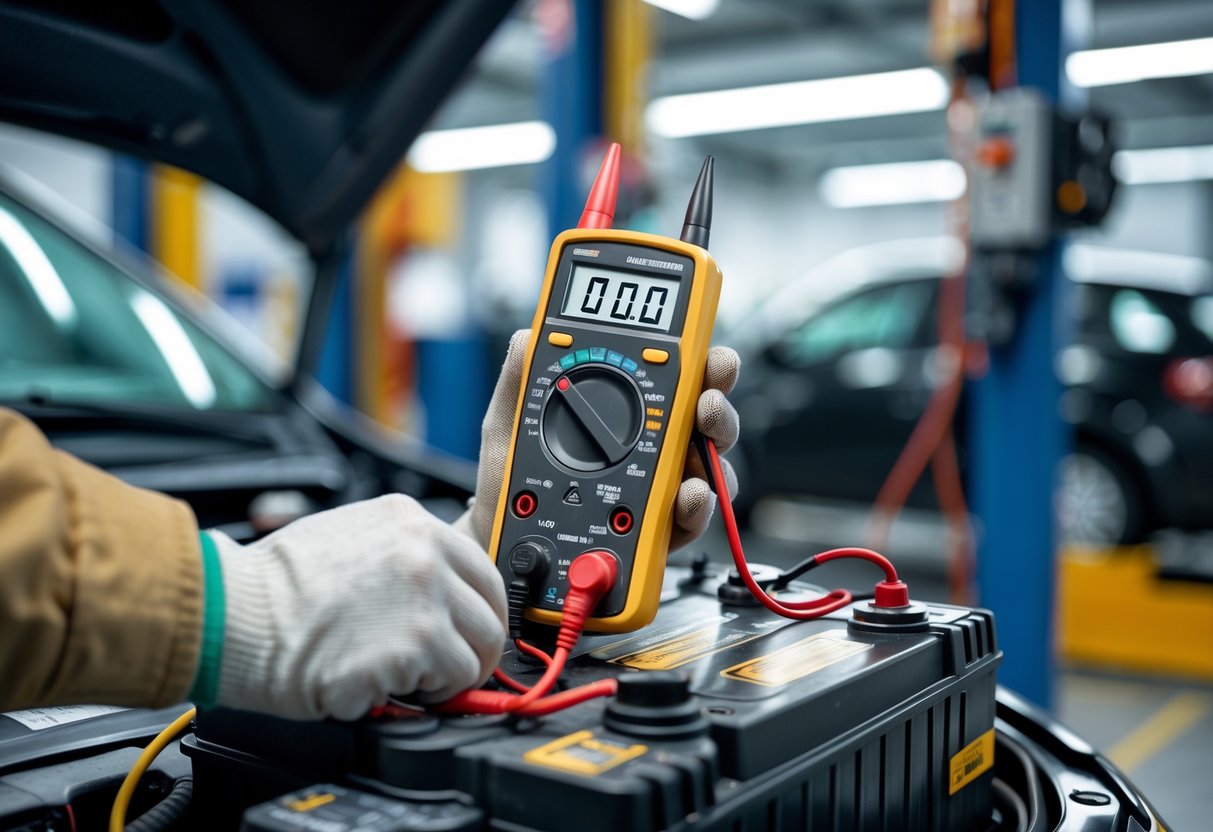

Considerations for Different Vehicle Types
Battery voltage testing methods vary depending on your vehicle type and manufacturer specifications. Each vehicle class has its own electrical system quirks that affect how you should approach battery testing.
Battery Voltage Testing in RVs
RVs often use dual battery systems – one for the engine and another for living quarters. Testing these requires special attention to both systems.
For motorhome engine batteries, the standard 12.6V reading applies for a fully charged battery. However, house batteries in RVs may use deep-cycle batteries with slightly different voltage ranges.
When testing RV batteries, make sure all accessories are off. This includes refrigerators, lights, and other appliances that might draw power.
RV deep-cycle batteries should read:
- Fully charged: 12.7-12.9V
- 75% charged: 12.4V
- 50% charged: 12.2V
- 25% charged: 12.0V
- Discharged: Below 11.9V
Using a multimeter with temperature compensation is especially important for RVs since these vehicles are often exposed to extreme climate conditions.
Specifics for Cars, SUVs, and Trucks
Standard passenger vehicles like cars generally have simpler battery systems than larger vehicles. SUVs and trucks, especially those with diesel engines, may have different voltage requirements.
For most cars, a healthy battery should show:
- 12.6V or higher: Fully charged
- 12.4V: 75% charged
- 12.2V: 50% charged
- Below 12.0V: Needs charging
Trucks and larger SUVs sometimes use higher-capacity batteries. These might still be 12V systems but have different cold cranking amp (CCA) ratings.
Diesel vehicles typically need stronger batteries. When testing these, pay attention to both voltage and load test results. A diesel battery might show proper voltage but fail under the high amperage demands of diesel starting.
Performance vehicles may have special battery placement. Sports cars often locate batteries in trunks or other non-standard locations for weight distribution.
Brand-Specific Guidelines (GM, Toyota, Honda, etc.)
Different manufacturers have their own battery specifications and testing procedures that can affect voltage readings.
GM vehicles (including Oldsmobile) often use side-terminal batteries that require special adapter connections for testing. GM’s recommended voltage is typically 12.6V minimum.
Toyota and Honda vehicles are sensitive to battery health and may show unusual symptoms with even slightly degraded batteries. Both recommend 12.4-12.7V for optimal performance.
Chrysler, Dodge, and Jeep models sometimes have battery management systems that require specific reset procedures after battery replacement. Test points may be located away from the battery itself.
Luxury brands like Mercedes often have sophisticated electrical systems. These vehicles typically require battery registration after replacement, where the car’s computer must recognize the new battery.
Hyundai and Kia models generally follow standard testing procedures, but newer models with auto start-stop features may have AGM batteries with different optimal voltage ranges (12.8-13.1V fully charged).
Acura vehicles, like their Honda counterparts, often benefit from testing the battery using both multimeter readings and load tests for complete diagnosis.
Helpful Resources for Battery Testing
Finding the right tools and expert advice can make battery testing easier and more accurate. Access to quality resources ensures you can maintain your vehicle’s electrical system properly.
Purchasing Testers and Tools Online
When shopping for battery testing equipment, several reliable online marketplaces offer quality options. eBay Motors provides a wide selection of both new and used battery testers at competitive prices. Many sellers offer detailed product descriptions and customer reviews to help with purchasing decisions.
A good digital multimeter is essential for accurate testing. Look for models that specifically include DC voltage testing capabilities up to 20 volts for automotive use. Most quality multimeters start around $20-40.
Dedicated battery testers offer more specialized features than basic multimeters. These devices can test load capacity and overall battery health, not just voltage. Prices typically range from $30 for basic models to $200+ for professional-grade equipment.
Consulting With Professionals
Auto parts retailers often provide free battery testing as part of their customer service. This can be valuable if you’re uncertain about your test results or lack proper equipment. Many stores use professional-grade testers that provide comprehensive reports on battery condition.
Mobile mechanics can perform battery testing at your home or workplace. This service is particularly valuable for those who cannot easily transport their vehicle. The cost typically runs $50-100 depending on your location and the complexity of the job.
Automotive electricians specialize in diagnosing electrical systems. They have advanced equipment to test not just the battery but the entire charging system. While more expensive than DIY testing, their expertise can save money by identifying specific problems rather than replacing parts unnecessarily.
Frequently Asked Questions
Battery testing can be confusing for many car owners. Below are answers to the most common questions about checking your car’s battery voltage and identifying potential problems.
What is the correct way to measure car battery voltage using a multimeter?
To measure car battery voltage properly, set your multimeter to DC voltage or DCV, ideally at the 20-volt range. This setting measures direct current voltage, which is what car batteries produce.
Make sure the car is off for at least 30 minutes before testing. Connect the red probe to the positive terminal and the black probe to the negative terminal.
Hold the probes firmly against the terminals to get an accurate reading. The display will show the current voltage of your battery, which you can compare to standard values.
What signs indicate a car battery is failing without the use of a multimeter?
Slow engine cranking is one of the most common signs of a failing battery. If your car struggles to start or makes a clicking sound, your battery may be weak.
Dim headlights and interior lights can indicate low battery power. These lights will appear noticeably less bright than normal, especially when the engine isn’t running.
Other warning signs include electrical components behaving erratically, a dashboard battery warning light, and a battery that’s swollen or leaking. A rotten egg smell might also indicate battery problems.
What should a 12V car battery’s voltage read when the engine is turned off?
A healthy 12V car battery should read between 12.5 and 12.7 volts when the engine is off and the battery is rested. This is considered the normal resting voltage.
A reading of 12.4 volts indicates the battery is about 75% charged, which is still acceptable. Anything below 12.4 volts suggests your battery is partially discharged.
If your battery reads below 12.0 volts when rested, it’s significantly discharged and may need charging or replacement.
How can you determine if a car battery voltage is too high or too low for safe operation?
Voltage below 12.0V when the engine is off indicates a battery that’s too low for reliable operation. This battery will likely struggle to start the vehicle and needs attention.
Voltage above 15V when the engine is running suggests a charging system problem. The alternator may be overcharging the battery, which can damage it over time.
The ideal voltage with the engine running should be between 13.8 and 14.5 volts. This range shows the alternator is properly charging the battery.
What steps should be taken to test a car battery with a multimeter for any faults?
First, perform an open circuit voltage test with the vehicle off and battery rested. This gives you the resting voltage as a baseline.
Next, test the battery under load by turning on the headlights for two minutes, then measuring again. The voltage should not drop significantly below 12.0V.
Finally, check the charging system by measuring voltage with the engine running. The reading should be between 13.8 and 14.5 volts, indicating proper alternator function.
At what voltage is a car battery considered too low to reliably start the engine?
A car battery measuring below 12.0 volts at rest will often struggle to start the engine. This level indicates the battery is only about 25% charged or less.
When cranking the engine, if voltage drops below 9.6 volts, the battery is too weak to reliably start the car. This significant voltage drop during cranking is a clear sign of battery failure.
Most vehicles require at least 10.5 volts during cranking to reliably start. Anything lower indicates either a failing battery or possibly issues with the starter or other electrical components.
